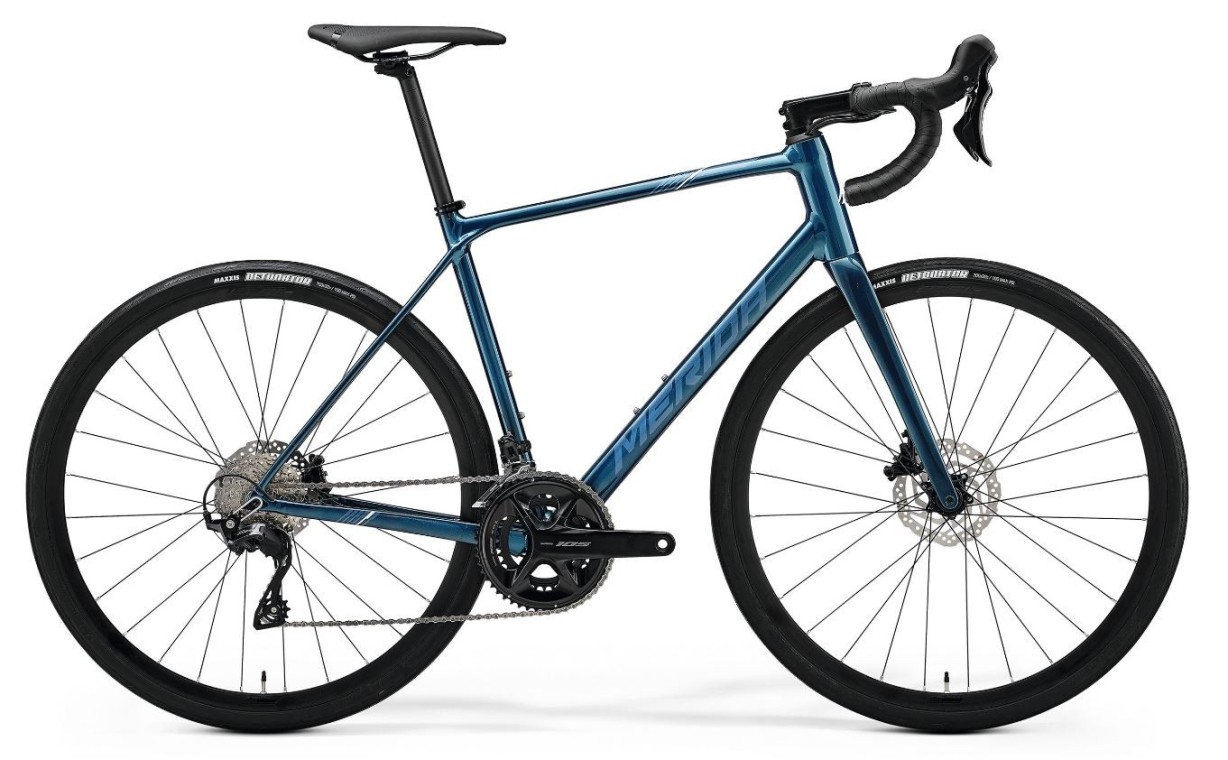

.00Sitting between the Silex and Scultura in the Merida road range the Scultura Endurance is aimed at tarmac adventure riding.
The Scultura Endurance geometry is perfectly suited to riders who want to enjoy long hours in the saddle while being comfortable and relaxed on the bike.
Endowed with a modern frame design and comfort-orientated geometry the Scultura Endurance has a longer head tube creating a more upright and comfort-orientated seating position. The slacker head tube angle and slightly longer wheelbase give the bike more stability at speed
To increase frame stiffness and steering precision the Scultura Endurance uses 12mm bolt through axles and a full carbon tapered fork.
There's plenty of tyre clearance (up to 35c, or 32c if you are running mudguards), larger volume tyres can be run at lower pressures and provide more comfort even on the most pothole littered country lanes.
Merida have used plenty of neat touches such as routing shifting and brake cables through the headset to declutter the cockpit.
All Scultura Endurance are equipped with powerful hydraulic disc brakes. Calipers are mounted via the flat mount standard for a neat, flush fit. Calipers sit on top of CNC'd aluminium Disc Cooler fins which reduce operating temperatures by up to 35%.
Pay in 3 instalments of £483.33* or in 30 days.
Available on all full price items.
We accept Cycle Scheme
Save up to £609
Pay with Cycle Scheme
Great advice & service - thank you Damian.
My new Cube Ebike is fantastic and the most fun I have had with clothes on in a while!
Specification| Availability | In stock |
| BIKE year | 2023 |
| Category | Road Bike |
| Colour | Teal |
| Condition | Brand new |
| bottom bracket | Shimano BB71-41B, Pressfit 86.5 |
| brake levers | Shimano 105 |
| cassette | KMC X11 |
| chain | KMC X11 |
| chainset | Shimano 105; 50-34 tooth chainset. Crank length:165mm XXS, 170mm XS,S, 172.5mm M, 175mm L,XL |
| fork | Scultura Endurance CF3 Disc; full carbon, tapered steerer. Max. tyre size: 700 x 35c 700 x 32c with mudguard |
| frame | Lite Aluminium, endurance geometry. Internal cable routing, 12mm through axles, BB86, flat mount rear brakes with Disc Cooler, 1 1/2inch headtube. Max tyre - 35c, 32c with mudguards |
| front brake | Shimano 105; hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
| front derailleur | Shimano 105 |
| grips | Merida Road Expert |
| handlebar | Merida Expert SL; aluminium; Width: 380mmXXS,400mm XS-S,420mm M,440mm L-XL |
| headset | Merida 8158 Semi Integrated |
| hub front | VP CLK170F; 100x12mm; 28 spokes, Center lock. With Merida Expert SL axle |
| hub rear | VP CLK270R; 142x12mm; 28 spokes; Center lock. With Merida Expert SL axle; including removable lever; 6/4mm allen key |
| rear brake | Shimano 105; hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
| rear derailleur | Shimano 105; GS |
| rims | Merida Expert SL; 17mm inner rim width; 22mm depth; aluminium; Tubeless ready tubeless tape and valves not included |
| saddle | Merida Comp SL; V-mount |
| seatpost | Merida Expert CC; Carbon; 27.2mm diameter; 15mm lay back |
| shift levers | Shimano 105 disc |
| spokes | Double Butted Black stainless |
| stem | Merida Expert CW; aluminium; 31.8mm diameter; -8 degree rise - Stem length: 80mm XXS, 90mm XS, 100mm S/M, 110mm L, 120mm XL |
| tyres | Front tyre: Maxxis Detonator; 700 x 32c; Kevlar bead, folding; Rear tyre: Maxxis Detonator; 700 x 32C; Kevlar bead; folding |
| MPN | A62211A04050 |
| PNUM | 19420 |
| PRICE | £1450.00 |
| Available now |
Size guide| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (cm) |
| 4' 10" - 5' 0" | 148 - 152 | XXS | 47 - 48 |
| 5' 0" - 5' 3" | 152 - 160 | XS | 49 - 50 |
| 5' 3" - 5' 6" | 160 - 168 | S | 51 - 52 - 53 |
| 5' 6" - 5' 9" | 168 - 175 | M | 54 - 55 |
| 5' 9" - 6' 0" | 175 - 183 | L | 56 - 57 - 58 |
| 6' 0" - 6' 3" | 183 - 191 | XL | 58 - 59 - 60 |
| 6' 3" - 6' 6" | 191 - 198 | XXL | 61 - 62 - 63 |
| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (cm) |
| 4' 10" - 5' 1" | 147 - 155 | XXS | 44 - 45 - 46 |
| 5' 1" - 5' 3" | 155 - 160 | XS | 47 - 48 - 49 |
| 5' 3" - 5' 5" | 160 - 165 | S | 50 - 51 - 52 |
| 5' 5" - 5' 8" | 165 - 172 | M | 53 - 54 - 55 |
| 5' 8" - 5' 10" | 172 - 180 | L | 56-57 |
