Please note:	Please confirm your bike's specifications with a member of staff.
PRICE	£1999.95
BIKE YEAR	2012
FULL DESCRIPTION	Scott 2012 Foil 20Features Are; Foil 20 The Foil 20 is an Aero Road bike developed to be faster and more efficient in all ROAD conditions. Featuring an aero HMF carbon fiber frame full Shimano Ultegra and Mavic Cosmic Elite wheels this is affordable excellence. Frame: FOIL Carbon Aero HMF-Net fibers Fork: HMF-Net carbon steerer Group set: NEW Shimano Ultegra Wheels: Mavic Cosmic Elite Model number 221870 - 20-Speed 221872 - 20-Speed Compact Foil 20 Sizes XXS47 XS49 S52 M54 L56 XL58 XXL61 Weight 7.40 kg 16.30 lbs Frame Scott Foil HMF NET IMP Aero Carbon technology Road Race geometry Replaceable Dropout Standard Seattube Integrated BB Fork Scott Foil HMF NET 1 18 - 1 14 Carbon steerer Integrated Carbon Dropout Headset Ritchey Pro Integrated Derailleur (Rear) Shimano Ultegra grey RD-6700 20 Speed Derailleur (Front) Shimano Ultegra grey FD-6700 Shifters Shimano Ultegra ST-6700 Carbon Dual control 20 Speed Brakes Shimano Ultegra BR-6700 grey Super SLR Dual pivot Crankset Shimano Ultegra grey Hollowtech II 20-Speed: FC-6700 53 x 39 Compact: FC-6750 50 x 34 BB-Set INT Dura-Ace SM-BB9141 Handlebar Scott Road Pilot Pro OS Anatomic 31.8 mm Hstem Scott Road Pilot Pro OS 1 18 four Bolt 31.8 mm Pedals nil Seatpost Ritchey Foil Aero Pro Carbon Seat Selle Italia X1 Hub (Front) Mavic Cosmic Elite Hub (Rear) Mavic Cosmic Elite Chain Shimano Ultegra CN-6700 Cassette Shimano Ultegra CS-6700 20-Speed: 11-25 T Compact: 11-28 T Spokes Mavic Cosmic Elite Rims Mavic Cosmic Elite 20 Front 20 Rear Tires Continental Ultra Race fold 700 x 23

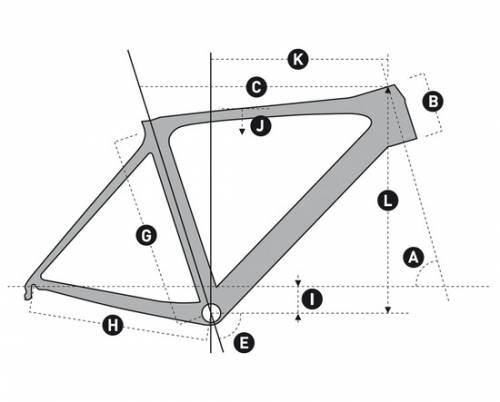

Frame geometry

Framesize	XXS/47	XS/49	S/52	M/54	L/56	XL/58	XXL/61
HEAD TUBE ANGLE	70.5°	71.0°	72.0°	73.0°	73.0°	73.3°	73.3°
HEADTUBE LENGTH	100 mm 3.9 in	105 mm 4.1 in	120 mm 4.7 in	550 mm 21.7 in	565 mm 22.2 in	580 mm 22.8 in	595 mm 23.4 in
TOPTUBE LENGTH HORIZONTAL	510 mm 20.1 in	520 mm 20.5 in	535 mm 21.1 in	550 mm 21.7 in	565 mm 22.2 in	580 mm 22.8 in	595 mm 23.4 in
SEAT TUBE ANGLE	74.5°	74.5°	74.0°	73.3°	73.3°	73.0°	72.5°
BB CENTER TO TOPTUBE CENTER	410 mm 16.1 in	430 mm 16.9 in	460 mm 18.1 in	480 mm 18.9 in	500 mm 19.7 in	520 mm 20.5 in	550 mm 21.7 in
CHAINSTAY LENGTH	405 mm 15.9 in	405 mm 15.9 in	405 mm 15.9 in	405 mm 15.9 in	405 mm 15.9 in	405 mm 15.9 in	405 mm 15.9 in
BB OFFSET	-67 mm -2.6 in	-67 mm -2.6 in	-67 mm -2.6 in	-67 mm -2.6 in	-67 mm -2.6 in	-67 mm -2.6 in	-67 mm -2.6 in
STANDOVER HEIGHT	717 mm 28.2 in	731 mm 28.8 in	755 mm 29.7 in	775 mm 30.5 in	794 mm 31.3 in	814 mm 32.0 in	838 mm 33.0 in
REACH	371 mm 14.6 in	379 mm 14.9 in	384 mm 15.1 in	385 mm 15.2 in	394 mm 15.5 in	400 mm 15.7 in	403 mm 15.9 in
STACK	503 mm 19.8 in	509 mm 20.0 in	527 mm 20.7 in	549 mm 21.6 in	569 mm 22.4 in	589 mm 23.2 in	608 mm 23.9 in
