Please note:	Please confirm your bike's specifications with a member of staff.
PRICE	£1198.00
BIKE YEAR	2012
FULL DESCRIPTION	Scott CR1 Comp Compact 2012 Road Bike. : The Shimano Tiagra equipped Scott CR1 Comp Compact 2012 Road Bike offers the perfect balance of performance and comfort. Designed to absorb shock and vibration created by irregularities in the road this concept results in a very smooth and stable ride reducing rider fatigue and making any ride more...Product highlightsFull product detailsFrame:Scott CR1 HMF NET IMP Carbon technology Road Comfort Geometry integrated BBFork:Scott CR1 HMF NET 1 18" carbon steerer integrated carbon dropoutGears:Shimano Tiagra ST-4600 Dual Control 20 speed shifters Shimano Tiagra FD-4606 front mech Shimano Tiagra RD-4600 20 Speed rear mech Shimano Tiagra 10 speed FC-4656 chainset with 5034 tooth chainrings Shimano Tiagra CS-4600 11-30 tooth cassette 20 gears

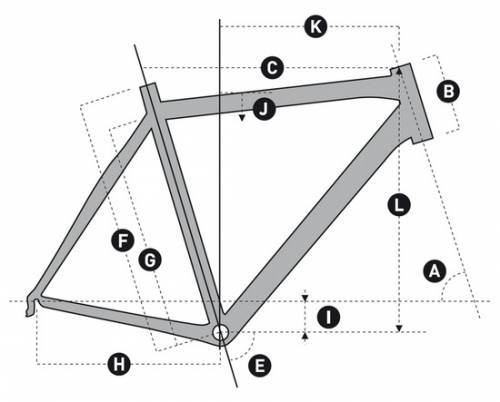

Frame geometry

Framesize	XXS/47	XS/49	S/52	M/54	L/56	XL/58	XXL/61
HEAD TUBE ANGLE	70.5°	71.0°	73.0°	73.0°	73.0°	73.0°	73.0°
HEADTUBE LENGTH	111 mm, 4.4 in	116 mm, 4.6 in	136 mm, 5.4 in	156 mm, 6.1 in	176 mm, 6.9 in	196 mm, 7.7 in	216 mm, 8.5 in
TOPTUBE LENGTH HORIZONTAL	505 mm, 19.9 in	515 mm, 20.3 in	530 mm, 20.9 in	545 mm, 21.5 in	560 mm, 22.0 in	575 mm, 22.6 in	595 mm, 23.4 in
SEAT TUBE ANGLE	75.0°	75.0°	74.5°	74.0°	73.5°	73.3°	73.3°
BB CENTER TO TOP OF SEATTUBE	470 mm, 18.5 in	490 mm, 19.3 in	520 mm, 20.5 in	540 mm, 21.3 in	560 mm, 22.0 in	580 mm, 22.8 in	610 mm, 24.0 in
BB CENTER TO TOPTUBE CENTER	410 mm, 16.1 in	430 mm, 16.9 in	460 mm, 18.1 in	480 mm, 18.9 in	500 mm, 19.7 in	520 mm, 20.5 in	550 mm, 21.7 in
CHAINSTAY LENGTH	405 mm, 15.9 in	405 mm, 15.9 in	405 mm, 15.9 in	405 mm 15.9 in	405 mm 15.9 in	405 mm 15.9 in	405 mm 15.9 in
BB OFFSET	-67 mm -2.6 in	-67 mm -2.6 in	-67 mm -2.6 in	-67 mm -2.6 in	-67 mm -2.6 in	-67 mm -2.6 in	-67 mm -2.6 in
STANDOVER HEIGHT	723 mm, 28.5 in	737 mm, 29.0 in	765 mm, 30.1 in	784 mm, 30.9 in	803 mm, 31.6 in	823 mm, 32.4 in	847 mm, 33.3 in
REACH	368 mm, 14.5 in	376 mm, 14.8 in	379 mm, 14.9 in	383 mm, 15.1 in	387 mm, 15.2 in	394 mm, 15.5 in	409 mm, 16.1 in
STACK	513 mm, 20.2 in	519 mm, 20.4 in	545 mm, 21.5 in	565 mm, 22.2 in	584 mm, 23.0 in	603 mm, 23.7 in	620 mm, 24.4 in
