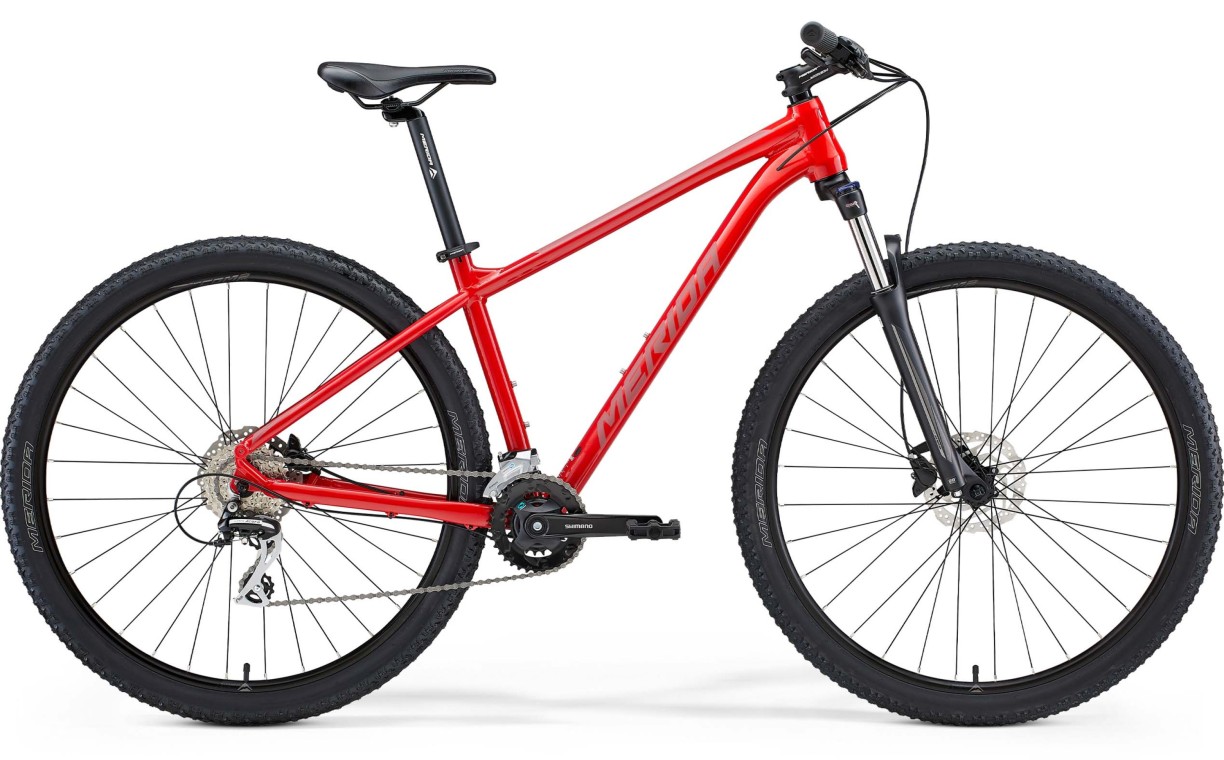

Merida's heartland has always been bombproof aluminium hardtails. Half a century of frame building experience counts for a lot.
Merida UK chose to upgrade all the Big Nine and Big Seven bikes destined for the UK to use a sophisticated TFS frame featuring the latest technology:
full internal cable routing, for a neat and clean set up,
tapered headtube for future upgrade potential
inboard disc brake mounts to protect the brake and maximise stopping power
Perfectly matching the modern frame Merida have used as much Shimano componentry as possible for reliability.
Merida offer a wide range of sizes, Big Nine for taller riders, Big Seven for shorter riders with a healthy overlap of sizes in between.
For riders in the middle, riding style can be taken into account. If you are looking for speed and efficiency choose a Big Nine, if you are looking for agility choose a Big Seven.
Pay in 3 instalments of £200* or in 30 days.
Available on all full price items.
We accept Cycle Scheme
Save up to £252
Pay with Cycle Scheme
Great bike. Great Service & excellent communication. Very happy.
Specification| Availability | In stock |
| BIKE year | 2023 |
| Category | Mountain Bike |
| Colour | Red |
| Condition | Brand new |
| bottom bracket | FSA TH-7420ST-W, Cartridge Bearing |
| brake levers | Shimano BR-MT200 or Tektro HD-M275 if Shimano supply is delayed |
| cassette | Sunrace M84 |
| chain | Sunrace M84 |
| chainset | Shimano FC-M315-2; 36-22 chainwheel with 170mm - S, 175mm - M/XXL length crank |
| fork | SunTour XCT30 HLO; Coil; 100mm travel; lockout. Max tyre clearance 29inch x 2.25inch |
| frame | TFS III - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake.Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max Tyre clearance 29inch x 2.25inch |
| front brake | Shimano BR-MT200 or Tektro HD-M275 hydraulic brake caliper with Shimano RT10; 160mm rotor |
| front derailleur | Shimano FD-M315-TS |
| grips | Merida EC |
| handlebar | Merida CC; aluminium; 690mm wide; 15mm rise |
| headset | Merida M2345 |
| hub front | Shimano TX505; 100x9mm; 32 spokes; Centerlock |
| hub rear | Shimano TX505; 135x9mm; 32 spokes; Centerlock |
| pedal | VP Components, VPE-891 |
| rear brake | Shimano BR-MT200 or Tektro HD-M275 hydraulic brake caliper with Shimano RT10; 160mm rotor |
| rear derailleur | Shimano RD-M360 |
| rims | Merida CC; 17mm inner rim width; Material: aluminium |
| saddle | Merida Sport comfort |
| seatpost | Merida CC; aluminium; 30.9mm diameter; 15mm lay back |
| shift levers | Shimano ST-EF505 |
| spokes | Black steel |
| stem | Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Length : 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL |
| tyres | Front tyre: Merida K1080; 29inch x 2.2inch; wire bead Rear tyre: Merida K1080; 29inch x 2.2inch; wire bead |
| MPN | 6110911526 |
| PNUM | 19229 |
| PRICE | £600.00 |
| Available now |
Click here to view finance options.
Call 029 2052 9955 or email us and this bike could be yours today!
Size guide| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (in) |
| 4' 10" - 5' 2" | 148 - 158 | XS | 13 - 14 |
| 5' 2" - 5' 6" | 158 - 168 | S | 15 - 16 |
| 5' 6" - 5' 10" | 168 - 178 | M | 17 - 18 |
| 5' 10" - 6' 1" | 178 - 185 | L | 19 - 20 |
| 6' 1" - 6' 4" | 185 - 193 | XL | 21 - 22 |
| 6' 4" - 6' 6" | 193 - 198 | XXL | 23 - 24 |
| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (in) |
| 4' 10" - 5' 2" | 148 - 158 | XS | 13 - 14 |
| 5' 2" - 5' 6" | 158 - 168 | S | 15 - 16 |
| 5' 6" - 5' 10" | 168 - 178 | M | 17 - 18 |
| 5' 10" - 6' 1" | 178 - 185 | L | 19+ |
