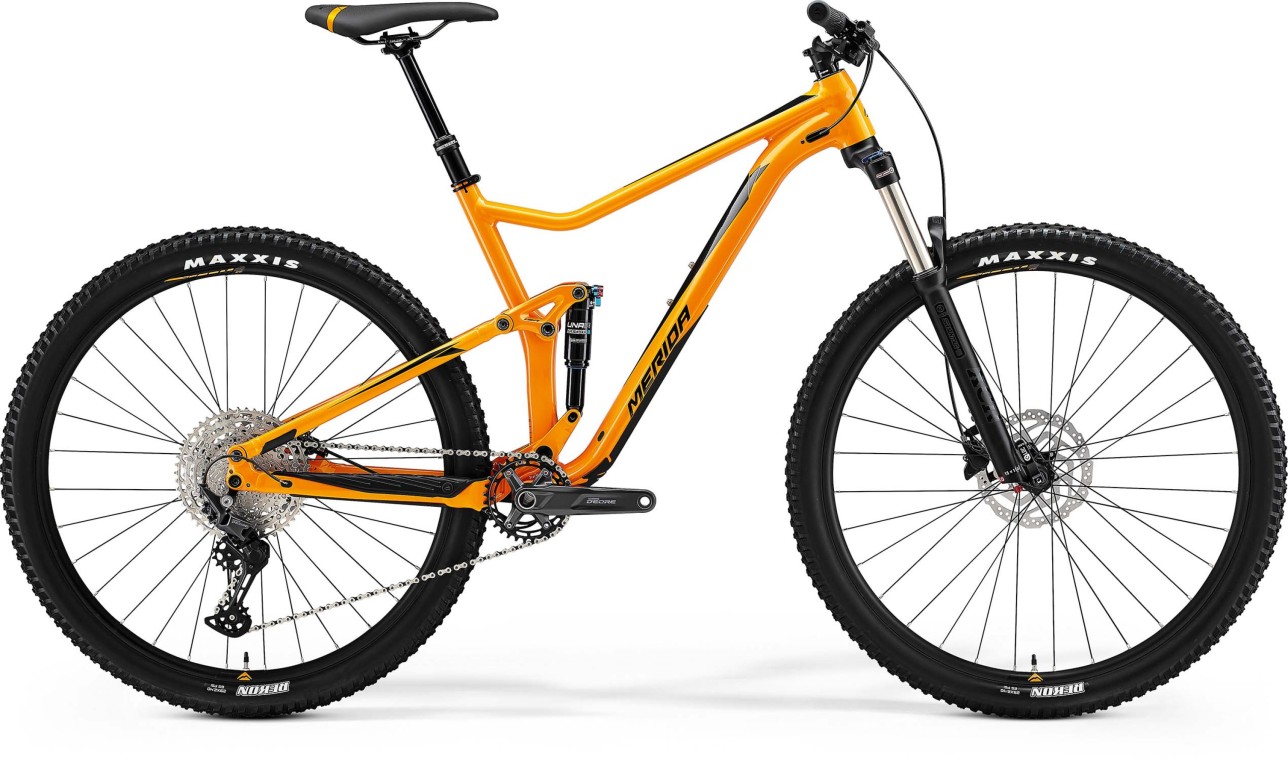

Merida's most versatile full suspension bike, as with all of the range, the One-Twenty is over forked running 130mm forks with plush 120mm rear travel.
The designers considered both riders and mechanics, delivering a playful modern trail bike with a slack head angle, low stand over height and short chain stays that's easy to maintain.
The rear shock is held in place with trunnion mounts which due to the wider mounting increases frame stiffness and reduces shock wear. The designers can run shorter shocks and longer stroke allowing more scope for suspension tuning.
All key bolts can be adjusted from one side of the bike with a Torx 30 key without the need for removing the chain set to access the main pivot bolt.
Specification| Availability | Out of stock, please call for availability |
|---|---|
| BIKE year | 2023 |
| Category | Mountain Bike |
| Colour | Orange |
| Condition | Brand new |
| bottom bracket | Shimano MT500-PA pressfit |
| brake levers | Shimano BR-MT200 or Tektro HD-M275 if Shimano supply is delayed |
| cassette | KMC X11 NPBK |
| chain | KMC X11 NPBK |
| chainset | Shimano Deore M5100; 32 teeth chainwheel with 170mm - S, 175mm - M up length crank |
| fork | SunTour XCR34 LOR; Air; 130mm travel; Tapered; lockout; 51mm fork offset. Maximum tyre clearance 29inch x 2.4inch |
| frame | Lite 6066 triple butted, hydroformed aluminium, smooth welding. Tapered head tube, Boost axle standard. Internal cable routing, Smart Entry cable clamping. BB92 BB standard, Max tyre clearance 29inch x 2.35inch |
| front brake | Shimano BR-MT200 or Tektro HD-M275 hydraulic brake caliper with Shimano RT10; 180mm rotor |
| grips | Merida Comp EC |
| handlebar | Merida Expert CC; aluminium; 740mm wide; 10mm rise |
| headset | FSA NO.47/50 |
| hub front | Shimano MT400-B; 110x15mm; 32 spokes; Centerlock |
| hub rear | Shimano MT400-B; 148x12mm; 32 spokes; Centerlock; including removable lever with 4/6mm Allen key |
| rear brake | Shimano BR-MT200 or Tektro HD-M275 hydraulic brake caliper with Shimano RT10; 180mm rotor |
| rear derailleur | Shimano Deore M5100 Shadow+ |
| rear shock | SunTour Unair TR LOR8; lockout |
| rims | Merida Comp CC; 20mm inner rim width; Material: aluminium |
| saddle | Merida Comp CC |
| seatpost | Merida Comp TR; 30.9mm diameter; in-line; S: 100mm drop - M: 125mm drop - L/XL: 150mm drop with Shimano SL -MT500-IL lever |
| shift levers | Shimano Deore M5100 |
| spokes | Black stainless |
| stem | Merida Expert CC; aluminium; 31.8mm diameter; -6 degree rise - Length : 60 mm all sizes |
| tyres | Front tyre: Maxxis Rekon; 29inch x 2.4inch; wire bead Rear tyre: Maxxis Rekon; 29inch x 2.4inch; wire bead |
| MPN | 6110879313 |
| PNUM | 19151 |
| PRICE | £1700.00 |
Click here to view finance options.
Call 029 2052 9955 or email us and this bike could be yours today!
Size guide| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (in) |
| 4' 10" - 5' 2" | 148 - 158 | XS | 13 - 14 |
| 5' 2" - 5' 6" | 158 - 168 | S | 15 - 16 |
| 5' 6" - 5' 10" | 168 - 178 | M | 17 - 18 |
| 5' 10" - 6' 1" | 178 - 185 | L | 19 - 20 |
| 6' 1" - 6' 4" | 185 - 193 | XL | 21 - 22 |
| 6' 4" - 6' 6" | 193 - 198 | XXL | 23 - 24 |
| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (in) |
| 4' 10" - 5' 2" | 148 - 158 | XS | 13 - 14 |
| 5' 2" - 5' 6" | 158 - 168 | S | 15 - 16 |
| 5' 6" - 5' 10" | 168 - 178 | M | 17 - 18 |
| 5' 10" - 6' 1" | 178 - 185 | L | 19+ |
