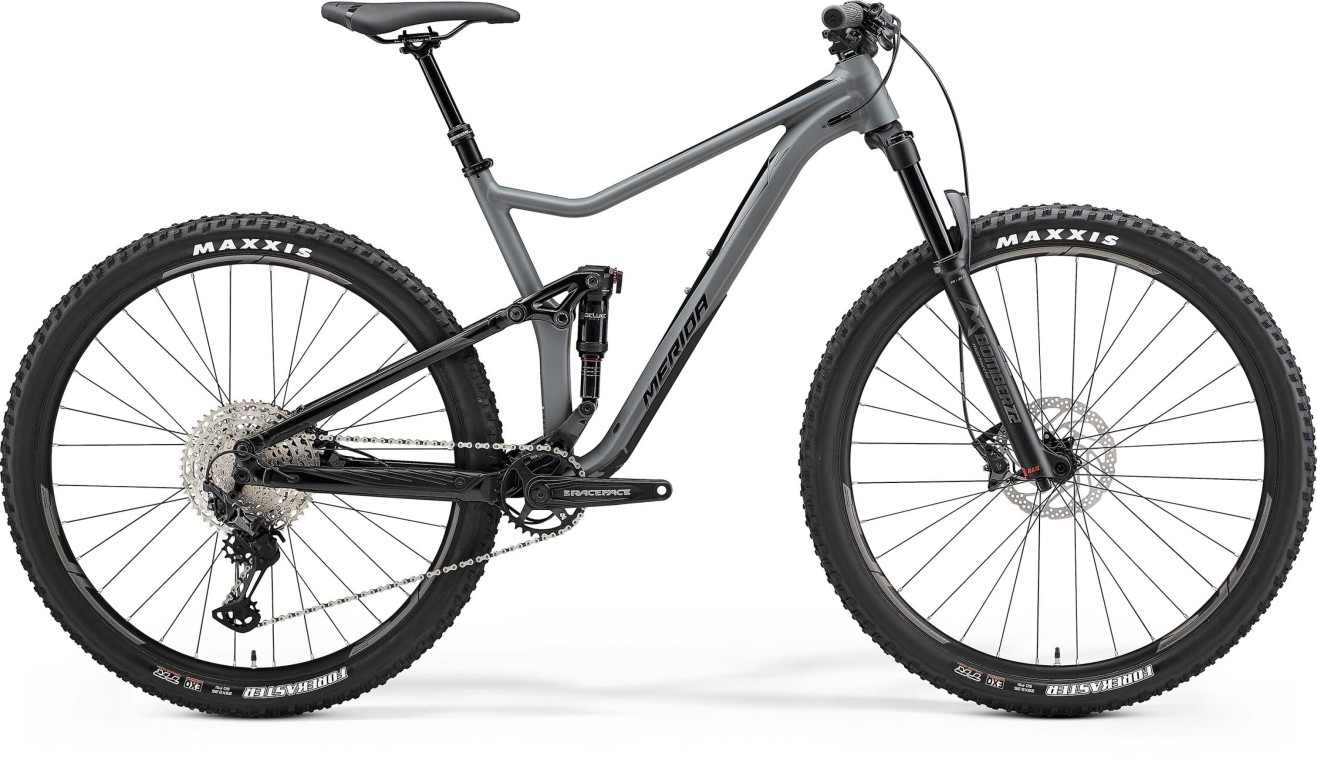

Merida's most versatile full suspension bike, as with all of the range, the One-Twenty is over forked running 130mm forks with plush 120mm rear travel.
The designers considered both riders and mechanics, delivering a playful modern trail bike with a slack head angle, low stand over height and short chain stays that's easy to maintain.
The rear shock is held in place with trunnion mounts which due to the wider mounting increases frame stiffness and reduces shock wear. The designers can run shorter shocks and longer stroke allowing more scope for suspension tuning.
All key bolts can be adjusted from one side of the bike with a Torx 30 key without the need for removing the chain set to access the main pivot bolt.
Specification| Availability | Out of stock, please call for availability |
|---|---|
| BIKE year | 2023 |
| Category | Mountain Bike |
| Colour | Grey |
| Condition | Brand new |
| bottom bracket | Race Face BB BB92 24mm |
| brake levers | Shimano MT-500 |
| cassette | KMC X12 |
| chain | KMC X12 |
| chainset | Race Face Ride; 32 teeth chainwheel with 170mm - S, 175mm - M up length crank |
| fork | Marzocchi Z2; Air; 130mm travel; Tapered; 44mm fork offset. Maximum tyre clearance 29inch x 2.6inch |
| frame | Lite 6066 triple butted, hydroformed aluminium, smooth welding. Tapered head tube, Boost axle standard. Internal cable routing, Smart Entry cable clamping. BB92 BB standard, Max tyre clearance 29inch x 2.35inch |
| front brake | Shimano M6100; 2 piston hydraulic disc brake with Shimano RT30; 180mm rotor |
| grips | Merida Comp EC |
| handlebar | Merida Expert TR; aluminium; 760mm wide; 20mm rise |
| headset | FSA NO.47/50 |
| hub front | Shimano MT400-B; 110x15mm; 32 spokes; Centerlock |
| hub rear | Shimano MT410-B; 148x12mm; 32 spokes; Centerlock; including removable lever with 4/6mm Allen key |
| rear brake | Shimano M6100; 2 piston hydraulic disc brake with Shimano RT30; 180mm rotor |
| rear derailleur | Shimano XT M8100 Shadow+ |
| rear shock | RockShox Deluxe Select+; lockout |
| rims | Merida Expert TR; 29mm inner rim width; Material: aluminium; Tubeless ready tubeless tape and valves not included |
| saddle | Merida Comp CC |
| seatpost | Merida Comp TR; 30.9mm diameter; in-line; S: 100mm drop - M: 125mm drop - L/XL: 150mm drop with Shimano SL -MT500-IL lever |
| shift levers | Shimano Deore M6100 |
| spokes | Double Butted Black stainless |
| stem | Merida Expert TR; aluminium; 35mm diameter; 0 degree rise - Length : 50 mm all sizes |
| tyres | Front tyre: Maxxis Forekaster; 29inch x 2.35inch; Kevlar bead; folding; TR EXO Dual Rear tyre: Maxxis Forekaster; 29inch x 2.35inch; Kevlar bead; folding; TR EXO Dual |
| MPN | 6110879153 |
| PNUM | 19152 |
| PRICE | £2100.00 |
Click here to view finance options.
Call 029 2052 9955 or email us and this bike could be yours today!
Size guide| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (in) |
| 4' 10" - 5' 2" | 148 - 158 | XS | 13 - 14 |
| 5' 2" - 5' 6" | 158 - 168 | S | 15 - 16 |
| 5' 6" - 5' 10" | 168 - 178 | M | 17 - 18 |
| 5' 10" - 6' 1" | 178 - 185 | L | 19 - 20 |
| 6' 1" - 6' 4" | 185 - 193 | XL | 21 - 22 |
| 6' 4" - 6' 6" | 193 - 198 | XXL | 23 - 24 |
| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (in) |
| 4' 10" - 5' 2" | 148 - 158 | XS | 13 - 14 |
| 5' 2" - 5' 6" | 158 - 168 | S | 15 - 16 |
| 5' 6" - 5' 10" | 168 - 178 | M | 17 - 18 |
| 5' 10" - 6' 1" | 178 - 185 | L | 19+ |
