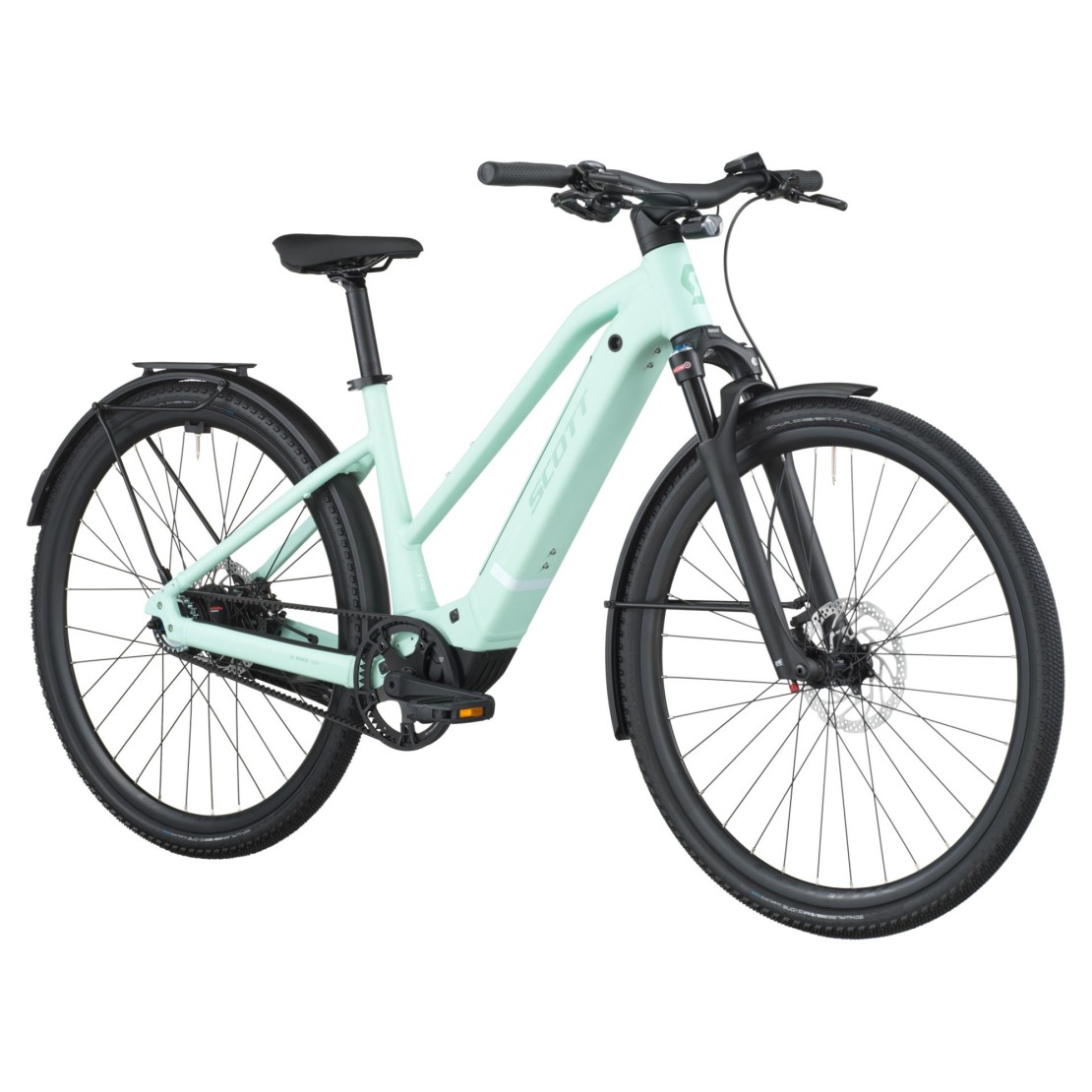

The Passage 10 Belt Slope E-Bike shares all the power and balanced ride quality of our Passage 10 Belt Bike for effortless and fun riding around town, but it has a lower standover height, making it easier to mount.
Passage 10 Belt Slope avoids the mainstream, bulky aesthetics of most e-urban bikes by using Bosch`s 2kg SX motor and slim 400Wh battery. It`s a powerful combo that keeps the bike light and balanced while delivering hill-crushing power whenever you need it and the range to easily handle a long commute.
The Bosch SX motor is also nice on the legs, featuring a narrower Q-factor that lets you have a natural pedaling style compared to larger e-bikes you`ll see in the city. Out front is a 75mm suspension fork that cushions your ride from rougher pavement as you zip around town. And if taking the scenic route or packing extra for the commute in, the rear rack sets you up to stow the day`s essentials.
This Passage 10 uses a belt drivetrain that stays much cleaner than a traditional chain drivetrain, uses no lubricant, won`t snag on your clothing, and requires little to no maintenance. So when you`re ready to park Passage for the day, kick out the kickstand and thank it for the effortless ride.
Please note that bike specifications are subject to change without prior notice.
Pay in 3 instalments of £1233* or in 30 days.
Available on all full price items.
We accept Cycle Scheme
Save up to £1,554
Pay with Cycle Scheme
Specification| Availability | In stock |
|---|---|
| BIKE year | 2026 |
| Category | Hybrid |
| Colour | Green |
| Condition | Brand new |
| battery | Compact Tube 400Wh Charger: 2A Charger |
| carriers | Carriers: Racktime Micro rear rack, Snap it 2.0 compatible, 8Kg Rack: Racktime Micro Rack SnapIt 2.0 8KG |
| cassette | Gates CDC 26T |
| chainring | Gates CDC 52T w/Guard |
| chainset | Gates CDC 125T |
| crankset | FSA CK-220 170mm |
| display | Bosch Purion 200 |
| extras | Alumee alloy profile Fender |
| fork | SR Suntour NRX32-E Air LO R, Tapered , 15x100 bolt Axle, Remote Lock Out , Alloy Steerer, 75mm Travel |
| frame | Alloy S-L29, 6061 Alloy custom butted tubing Top extraction battery |
| handlebar | Syncros Welded Alloy Combo 680mm, Backsweep 9, Upsweep 8, 70mm, with front Light mount |
| headset | Acros, 1.5- 1.5 semi integ. OD 50/61mm, ID 44/55mm |
| hub front | Shimano HBTC50015B CL, 15x100mm |
| hub rear | Shimano Nexus 8 Speed |
| lighting | Lezyne Fusion E550SM front light Rear Supernova TL3Z |
| motor | Bosch Performance Line SX BDU314Y EU: 25kmh |
| pedal | Marwi SP-827 |
| rims | Syncros X15 Disc |
| saddle | Syncros Capilano |
| seatpost | Seatpost: Syncros M3.0, 31.6 |
| shifters | Shimano Alfine SL-S503 Rapid Fire Plus |
| shock | Travel: 75mm |
| tyres | Front: Schwalbe G-One Overland 365 Performance, 700x45C Rear: Schwalbe G-One Overland 365 Performance, 700x45C |
| wheelset | Spokes: Black Spokes |
| MPN | 4256142878010 |
| PNUM | 21316 |
| PRICE | £3699.00 |
| Available now |
Reviews| Feel | Quality | Ride | Value | ||
|---|---|---|---|---|---|
| Mr Steven Dexter |  | | | |
10 |
| Previous model reviewed. Scott bikes have the perfect balance for road and country riding. Great speed on the road and great balance off road. | |||||
| Mr Ray Lowe | | | | |
10 |
| Previous model reviewed. Damian was really helpfull in ensuring I got the right bike at the right price,and next day delivery.Many thanks | |||||
| Mr Sanjiv Venkatasamy |  |  | |  |
8.3 |
| Mr Lea Barker |  | | | |
7.5 |
| Miss Louise Davis | | | | |
9.3 |
| Feel | 9 |
| Quality | 10 |
| Ride | 10 |
| Value | 9 |
| Overall rating | 9.5 |
Click here to view finance options.
Call 029 2052 9955 or email us and this bike could be yours today!
Hybrid Bikes Size Guide
| RIDER HEIGHT | FRAME SIZE SUGGESTED | |||
|---|---|---|---|---|
| (ft - in) | (cm) | (in) | Size | (cm) |
| 4' 10" - 5' 1" | 147 - 155 | 13 - 14 | XS | 47 - 49 |
| 5' 1" - 5' 5" | 155 - 165 | 15 - 16 | S | 50 - 52 |
| 5' 5" - 5' 9" | 165 - 175 | 17 - 18 | M | 53 - 54 |
| 5' 9" - 6' 0" | 175 - 183 | 19 - 20 | L | 55 - 57 |
| 6' 0" - 6' 3" | 183 - 191 | 21 - 22 | XL | 58 - 61 |
| 6' 3" - 6' 6" | 191 - 198 | 23 - 25 | XXL | 61 - 63 |
