| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| Feet and Inches | Centimetres | Inches | Size |
| 4' 10" - 5' 2" | 148 - 158 | 13 - 14 | XS |
| 5' 2" - 5' 6" | 158 - 168 | 15 - 16 | S |
| 5' 6" - 5' 10" | 168 - 178 | 17 - 18 | M |
| 5' 10" - 6' 1" | 178 - 185 | 19 - 20 | L |
| 6' 1" - 6' 4" | 185 - 193 | 21 - 22 | XL |
| 6' 4" - 6' 6" | 193 - 198 | 23 - 24 | XXL |
| RIDER HEIGHT | FRAME SIZE SUGGESTED | ||
|---|---|---|---|
| Feet and Inches | Centimetres | Inches | Size |
| 4' 10" - 5' 2" | 148 - 158 | 13 - 14 | XS |
| 5' 2" - 5' 6" | 158 - 168 | 15 - 16 | S |
| 5' 6" - 5' 10" | 168 - 178 | 17 - 18 | M |
| 5' 10" - 6' 1" | 178 - 185 | 19+ | L |
Shipping is free within England, Wales and parts of Scotland. Due to the size and weight of most bikes however, a charge would apply to shipping remote regions, offshore UK and Ireland.
The courier will require a signature for your delivery. If no one is available to sign for your goods, the courier will leave a card with instruction of where you can collect it.
Working days are Monday to Friday. However, there may be circumstances beyond our control which cause delay and in such circumstances we will endeavour to deliver the goods within 7 days of the date the order was made.
Our flexible finance options mean you can purchase this product with a minimal deposit (or call us and arrange a deposit that suits you). Before applying for finance, please ensure you have read the information on eligability.

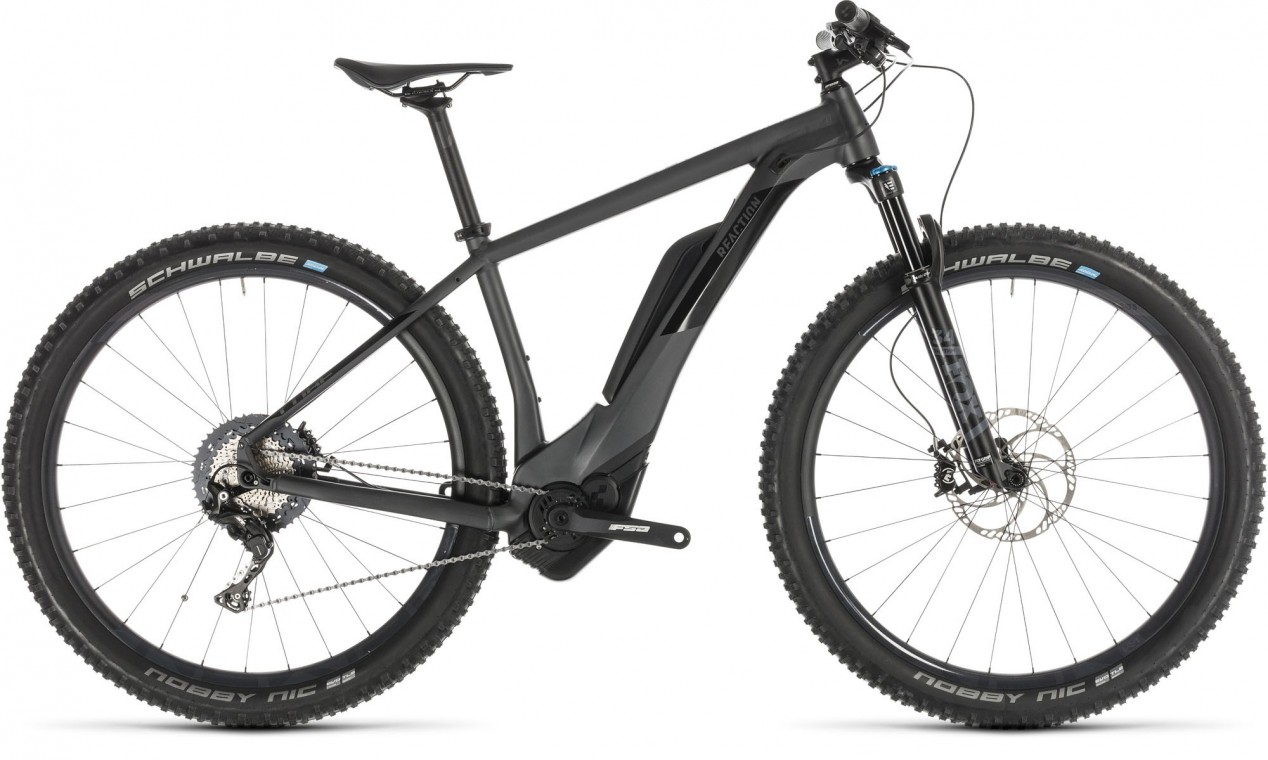

The Reaction Hybrid HD has certainly earned the tag "Heavy Duty". Carefully selected, durably strong components are matched to our stiff, gravity cast frame to create an e-bike that stands head and shoulders above the pack with its maximum weight limit of 150 kg. The powerful Bosch CX drive is not only integrated beautifully into the frame, it's also perfectly positioned for maximum power transmission. The tapered head tube, 12 mm Boost through-axle and our highly acclaimed Agile Ride Geometry deliver handling that never feels anything less than intuitive and safe. No matter how steep the climb, the Shimano XT 11-speed transmission with 11-46T cassette will carry you to the top effortlessly. And hydraulic Magura MT5 disc brakes together with the aggressive profile of the 2.6'' Nobby Nic tyres offer outstanding speed control in all weathers. Topping off this great hassle-free package perfectly are the extremely stable Newmen Evolution SL E.35 wheels and cockpit components along with internal cabling.
(£1,344 on this bike)
| GEARSET | 11 gears. |
| BRAKES | Magura MT5, Hydr. Disc Brake 203-180 |
| WHEELSET | Newmen Evolution SL E.35, 28-28 Spokes, 15x110mm - 12x148mm, Tubeless Ready |
| FRAME | ALUMINIUM |
| FORK | Fox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 100mm |
| HEADSET | FSA Orbit 1.5E ZS, Top Zero-Stack 1 1-8inch OD 44mm, Bottom Zero-Stack 1 1-2inch OD 56mm |
| REAR DERAILLEUR | Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed |
| SHIFTERS | Shimano XT SL-M8000, 11-Speed |
| CRANKSET | Race Face Aeffect, 175mm, 15T 15T |
| HANDLEBAR | Newmen Evolution 318.20, 760mm |
| PEDAL | CUBE PP MTB |
| SEATPOST | Newmen Evolution, 30.9mm |
| CHAIN | KMC X11e |
| CASSETTE | Shimano SLX CS-M7000, 11-46T |
| GRIPS | CUBE Race Grip 31mm, 1-Clamp |
| SADDLE | Natural Fit Active Race |
| SEAT CLAMP | CUBE Varioclose, 34.9mm |
| STEM | Newmen Evolution 318.4, 31.8mm |
| WEIGHT | 21.6 |
| EXTRAS | Bosch 4A |
| TYRES | Schwalbe Nobby Nic Kevlar 2.60, Addix Speedgrip, Tubeless Easy |
| BATTERY | Bosch PowerPack 500 |
| MOTOR | Bosch Drive Unit Performance CX 75Nm Cruise 250Watt |
| DISPLAY | Bosch Purion |
| CATEGORY | Electric Bikes |
| CONDITION | Brand new |
| AVAILABILITY | In stock |
| BIKE YEAR | 2019 |
| MPN | 23918017 |
