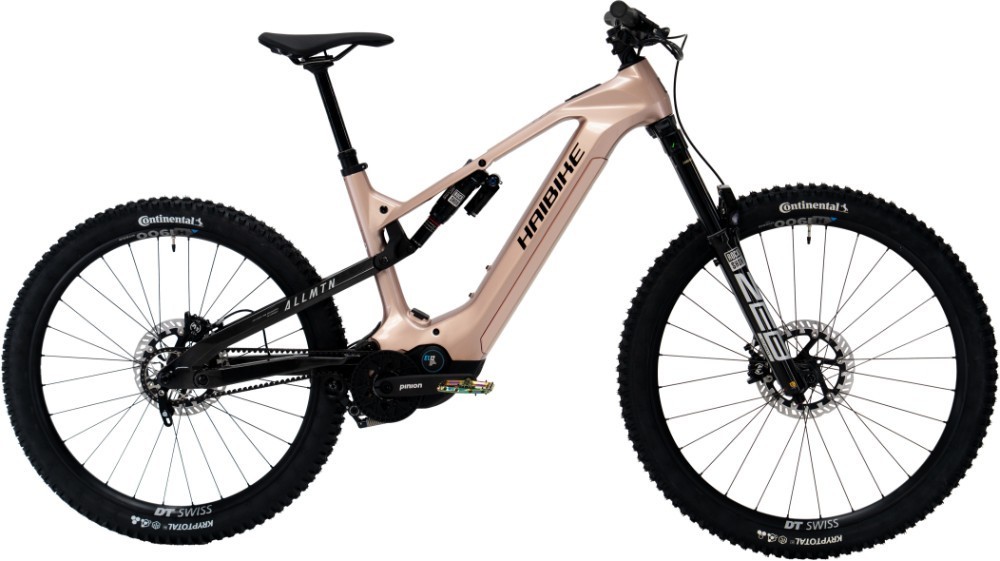

The Haibike AllMtn CF 11 TRN/IQ is a next-gen trail e-bike that brings together advanced technology, minimal maintenance and playful ride quality. At its core is a European-built carbon frame that’s lightweight, responsive and engineered for all-mountain agility. Short chainstays and a centralised centre of gravity make this bike feel lively and confident across technical terrain.
Key Features:
Lightweight carbon frame with playful geometry and central centre of gravity
RockShox ZEB Ultimate RC2 fork with 160mm of travel
RockShox Super Deluxe Ultimate RC2T rear shock, 160mm travel
Pinion TE1 shifter with integrated 12-speed gearbox
Magura MT5 4-piston hydraulic disc brakes front and rear
DT Swiss H1900 wheels with mullet setup: 29" front, 27.5" rear
Gates Carbon Drive CDX belt system for low-maintenance performance
Available with 0% APR finance
Drive Information:
Motor: Pinion E1.12 MGU with 85Nm torque and integrated 12-speed gearbox
Battery: InTube 800Wh removable battery
User Interface: FIT Master Mode with intuitive display and control
Haibike AllMTN CF Pinion MGU Review
What sets the CF 11 apart is the Pinion E1.12 MGU (Motor Gearbox Unit)—a seamlessly integrated motor and 12-speed gearbox that eliminates the need for a derailleur and cassette. This not only lowers unsprung mass for improved suspension performance, but also means fewer moving parts, less maintenance and no gear skipping. The Gates Carbon Drive CDX belt system is clean, quiet and requires minimal upkeep, giving you more ride time and less workshop time.
Shifting is handled electronically via Smart.Shift technology, which means instant, precise gear changes—even under load or on steep inclines. The system is sealed from the elements, ensuring long-term reliability in mud, rain or dust.
The suspension package is trail-proven, with a 160mm RockShox ZEB Ultimate Charger 3.1 RC2 fork and Super Deluxe Ultimate rear shock, delivering excellent small-bump sensitivity and big-hit control. Magura MT5 brakes with 4-piston calipers offer strong, fade-free stopping power, while the DT Swiss H1900 wheelset (mullet setup: 29” front / 27.5” rear) provides a confident balance of speed and agility.
With an 800Wh battery, the AllMtn CF 11 offers long-range capability for big days on the hill, while the FIT Master Mode display keeps everything dialled in and easy to control from the cockpit.
Whether you're climbing technical singletrack, railing alpine descents or exploring new backcountry routes, the Haibike AllMtn CF 11 is a smart, capable and seriously fun way to ride further and faster off-road.
Occasionally, without notice, manufacturers change product design and/or specifications.
Pay in 3 instalments of £2633* or in 30 days.
Available on all full price items.
We accept Cycle Scheme
Save up to £3,318
Pay with Cycle Scheme
Specification| Availability | In stock |
|---|---|
| BIKE year | 2026 |
| Category | Mountain Bike |
| Colour | Rock/Carbon/Grey |
| Condition | Brand new |
| Fork RockShox ZEB Ultimate Charger 3.1 RC2 160 mm Rear Shock RockShox Super Deluxe Ultimate RC2T Stem Haibike Components TheStem +++ Bars Haibike Components TheBar +++ 780mm Front Brake Magura MT5 Rear Brake Magura MT5 Rear Mech N/A Shifters Pinion TE1 trigger Speed 12 Rims DT Swiss H1900 Front Hub DT Swiss 370 Rear Hub DT Swiss 370 Spokes DT Hybrid 1SP Front Tyre Continental Kryptotal- F, 60-622 Rear Tyre Continental Xynotal Trail Endurance, 65-584 Seat Post Dropper-post remote, aluminium Saddle Selle Royal Vivo Chainset Pinion Forge Chain Gates Carbon Drive CDX Cassette Gates Alloy 39 Pedals Freeride Pedal Aluminium Battery Size (WH) InTube 800Wh Motor Pinion E1.12 MGU Motor & Gearbox User Interface FIT Master Mode | |
| PNUM | 21657 |
| PRICE | £7899.00 |
| Available now | |
Reviews| Feel | Quality | Ride | Value | ||
|---|---|---|---|---|---|
| Mr Andrew Gills |  | | | |
10 |
| Feel | 10 |
| Quality | 10 |
| Ride | 10 |
| Value | 10 |
| Overall rating | 10 |
Click here to view finance options.
Call 029 2052 9955 or email us and this bike could be yours today!
Size guide
Mountain bike sizing for this model, with the available sizes shown alongside the guide.
Start with rider height, then adjust for reach, standover and riding style.
| Rider height | Frame size suggested | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (in) |
| 4' 10" - 5' 2" | 148 - 158 | XS | 13 - 14 |
| 5' 2" - 5' 6" | 158 - 168 | S | 15 - 16 |
| 5' 6" - 5' 10" | 168 - 178 | M | 17 - 18 |
| 5' 10" - 6' 1" | 178 - 185 | L | 19 - 20 |
| 6' 1" - 6' 4" | 185 - 193 | XL | 21 - 22 |
| 6' 4" - 6' 6" | 193 - 198 | XXL | 23 - 24 |
