Updated TFS aluminium frame with clearance for 2.4" tyres
Trail ready geometry for confident off-road handling
120mm Suntour suspension fork
Shimano MT200 hydraulic disc brakes
Shimano 1 x 8 drivetrain
27.5" wheels with Shimano hubs and Kenda tyres
Size tuned Merida finishing kit

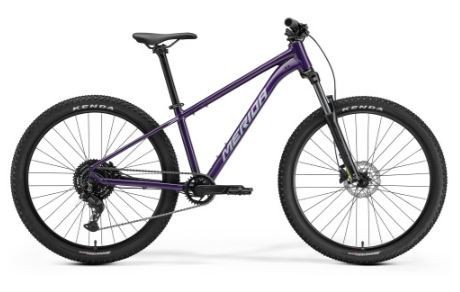

650b hardtail with sophisticated TFS aluminium trail ready geometry frame, Shimano 1 x 8 drivetrain, SR Suntour 120mm suspension fork, Shimano hydraulic disc brakes,
Merida's expertise for over 50 years has been building bombproof aluminium hardtails. The latest generation follows modern mountain bike trends - a longer reach combined with a shorter stem. The geometry features a steeper seat angle and slacker head angle for greater offroad capability but without compromising everyday usability. The sophisticated TFS frames feature: full internal cable routing for a clean, neat set up, tapered headtube offering future upgrade potential inboard disc brake mounts protect the brake and maximise stopping power; dropper post ready New XXS Big Seven size extends the wide range of sizes; Big Nine for taller riders, Big Seven for shorter riders. Riders in the middle can take riding style into account - for speed and efficiency choose a Big Nine, for agility choose a Big Seven.
Pay in 3 instalments of £241.67* or in 30 days.
Available on all full price items.
We accept Cycle Scheme
Save up to £305
Pay with Cycle Scheme
Specification| Availability | In stock |
|---|---|
| BIKE year | 2027 |
| Category | Mountain Bike |
| Colour | Dark Purple (Blue) |
| Condition | Brand new |
| Frame | TFS V - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 27.5" x 2.4" |
| Fork | SR Suntour XCM32; Coil; 120mm travel; SR Suntour 5TA; 27.5x2.4" max. wheel size |
| Gears | 8 |
| Shifters | Rear: Shimano Essa SL-315-8R |
| Rear Derailleur | Shimano Essa U2000; GS |
| Bottom Bracket | Shimano UN101 LL123 |
| Chain | KMC Z8.3 |
| Chainset | Prowheel Epro-MD26S; 32 teeth; Aluminium; Crank Length: 165mm for all sizes |
| Cassette | Shimano CS-HG300-8; 11-45 teeth; 8 speed |
| Front Brake | Shimano MT200; hydraulic 2 piston brake |
| Rear Brake | Shimano MT200; hydraulic brake |
| Grip | Merida EC |
| Handlebar | Merida Comp CC; aluminium; 15mm rise; (XXS-XS) - 700mm; S - 720mm |
| Stem | Merida Comp CC; aluminium; 31.8mm diameter; 7 degree rise |
| Head Set | FSA NO.55R/57SC/57B |
| Pedal | VP VPE 536 |
| Saddle | Merida Sport |
| Seat Post | Merida Comp CC; aluminium; 30.9mm diameter; in-line |
| Wheel Size | 27.5" |
| Rims | Merida Comp CC; 20mm inner rim width; Aluminium |
| Spokes | Black steel |
| Front Hub | Shimano TX505; for SR Suntour 5TA; 100x9mm; 32 spoke; Centerlock |
| Rear Hub | Shimano QC300-HM; 135x9mm; 32 Spoke; Centerlock |
| Front Tyre | Kenda Booster; 27.5x2.4" |
| Rear Tyre | Kenda Booster; 27.5x2.4" |
| Colour | Dark Purple (Blue) |
| Season | 2027 |
| PNUM | 2249 |
| PRICE | £725.00 |
| Available now |
Click here to view finance options.
Call 029 2052 9955 or email us and this bike could be yours today!
Size guide
Mountain bike sizing for this model, with the available sizes shown alongside the guide.
Start with rider height, then adjust for reach, standover and riding style.
| Rider height | Frame size suggested | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (in) |
| 4' 10" - 5' 2" | 148 - 158 | XS | 13 - 14 |
| 5' 2" - 5' 6" | 158 - 168 | S | 15 - 16 |
| 5' 6" - 5' 10" | 168 - 178 | M | 17 - 18 |
| 5' 10" - 6' 1" | 178 - 185 | L | 19 - 20 |
| 6' 1" - 6' 4" | 185 - 193 | XL | 21 - 22 |
| 6' 4" - 6' 6" | 193 - 198 | XXL | 23 - 24 |
