Merida eBig Nine 400 2023 Electric Mountain Bike

Merida eBig Nine 400 2023 Electric Mountain Bike

RRP £3,250,

2694

.00
save £556

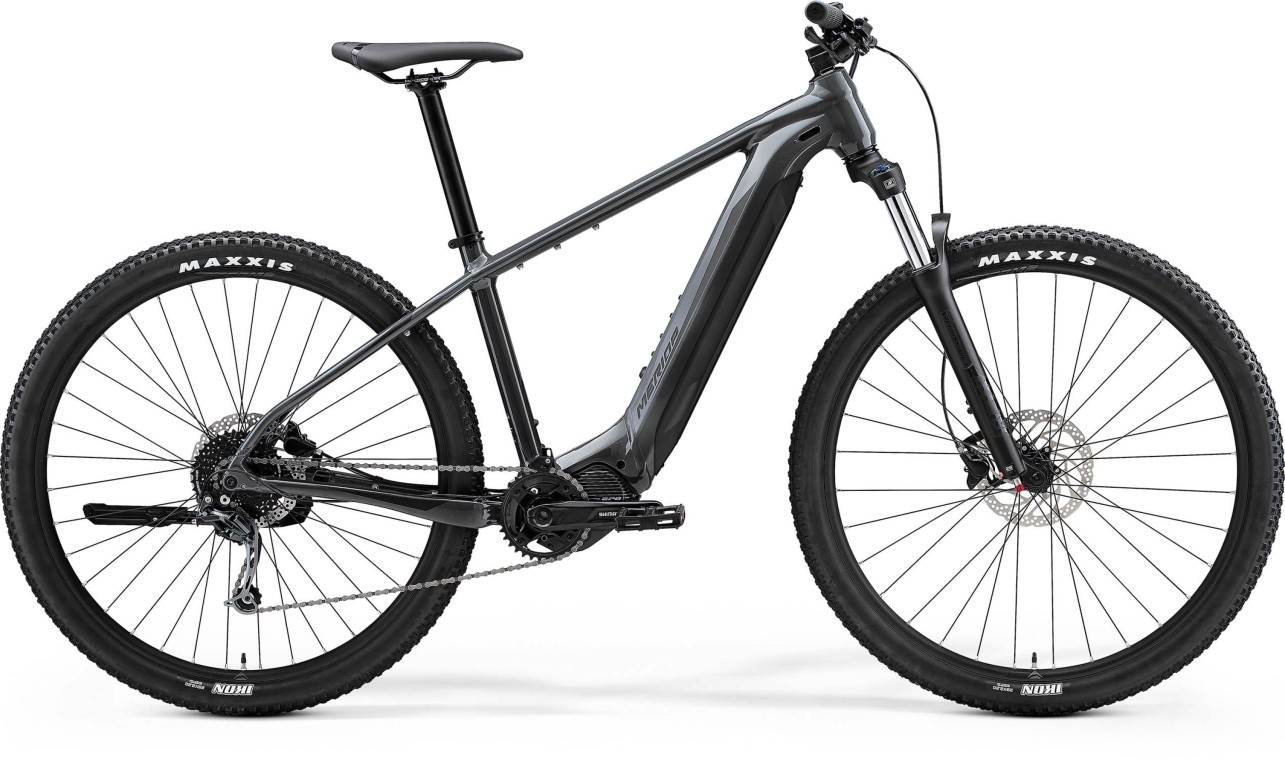

Merida EBig Nine 400 Hybrid Ebike - Grey

The geometry of the Merida eBig Nine and eBig Seven bikes follow one very simple principle: As sporty as possible, as comfortable as necessary.

You ride to work in the morning but fancy a little off road detour on the way home? No problem ? that is what these bikes are made for!

Combining the best bits of a mountain bike and a trekking bike, these rugged machines can be fitted with mudguards and racks making them ideal for commuting or year round leisure riding.

The eBig Nine 400 is the cheapest Merida eBike to use Shimano's EP8 85Nm motor and 630w battery.

Many technical features and much of the thinking that went into the award winning eOne-Sixty make an appearance to deliver a stylish and well though through hardtail.

The strong, stiff aluminium frame is a result of extensive hydroforming, precision laser cutting and CNC machining. The battery is housed low down in the downtube behind a dual compound cover which deadens noise and can be charged in the bike using a satellite charging port.

Remarks

Integrated 630Wh battery powering 85Nm Shimano Steps EP8 motor. Equipped with Shimano Deore 10 speed and Shimano hydraulic disc brakes

We accept Cycle Scheme
Save up to £1,131

Pay with Cycle Scheme

Surcharge applies on sale items
I was nervous of buying on the web but DH made it an easy process.

Cassette Specification

Availability In stock
BIKE year 2023
Category Mountain Bike
Colour Grey
Condition Brand new
battery 630 Wh
bottom bracket Part of Shimano Steps motor
brake levers Shimano BR-MT200 or Tektro HD-M275 if Shimano supply is delayed
cassette Shimano CN-HG54
chain Shimano CN-HG54
chainset Shimano CRE70-B; 34 teeth chainwheel with Shimano FCEM600; 165mm length crank
display Shimano SC-E5003
fork SunTour XCM34-Boost LOR DS; 100mm; Tapered; 51mm fork offset. Max Tyre clearance 29inch x 2.4inch
frame Lite III - Hydroformed 6066 aluminium, intergrated battery, internal cable routing, Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Mounts for mudguards and kickstand. Max Tyre clearance 29inchx2.25inch with mudguards, 29inchx2.35inch w
front brake Shimano BR-MT200; 2 piston hydraulic disc brake or Tektro HD-M275 with Shimano RT30; 180mm rotor
grips Merida Expert EC
handlebar Merida Expert eTR; 760mm wide; 20mm rise
headset Merida-8152
hub front Shimano MT400-B; 110x15mm; 32 spokes; Centerlock
hub rear Shimano MT400-B; 148x12mm; 36 spokes; Centerlock; including removable lever with 4/6mm Allen key
motor Shimano E8036; 630Wh battery, Shimano EP8; 85Nm motor
pedal VP Components, VPE-537
rear brake Shimano BR-MT200; 2 piston hydraulic disc brake or Tektro HD-M275 with Shimano RTEM300; 180mm rotor
rear derailleur Shimano Deore RDM5120 10
rims Merida Comp CC; 20mm inner rim width; Material: aluminium
saddle Merida Comp CC; V-mount
seatpost Merida Expert CC; aluminium; 34.9mm diameter; in-line
shift levers Shimano Deore M4100 10 speed
spokes Black stainless
stem Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Length : 50 mm all sizes
tyres Front tyre: Maxxis Ikon; 29inch x 2.2inch; kevlar bead Rear tyre: Maxxis Ikon; 29inch x 2.2inch; kevlar bead
MPN6110867401
PNUM19170
PRICE£2694.00
 Available now
Send

Sizing guide Size guide

Mountain bike sizing chart (Mountain bike)

RIDER HEIGHT FRAME SIZE SUGGESTED
(ft - in) (cm) Size (in)
4' 10" - 5' 2" 148 - 158 XS 13 - 14
5' 2" - 5' 6" 158 - 168 S 15 - 16
5' 6" - 5' 10" 168 - 178 M 17 - 18
5' 10" - 6' 1" 178 - 185 L 19 - 20
6' 1" - 6' 4" 185 - 193 XL 21 - 22
6' 4" - 6' 6" 193 - 198 XXL 23 - 24

Women's mountain bike sizing chart (Mountain bike)

RIDER HEIGHT FRAME SIZE SUGGESTED
(ft - in) (cm) Size (in)
4' 10" - 5' 2" 148 - 158 XS 13 - 14
5' 2" - 5' 6" 158 - 168 S 15 - 16
5' 6" - 5' 10" 168 - 178 M 17 - 18
5' 10" - 6' 1" 178 - 185 L 19+
Merida EBig Nine 400  Hybrid Ebike - Grey
Merida EBig Nine 400  Hybrid Ebike - Grey
