Lightweight carbon fibre CF3 frame with 170/174 mm travelMullet 29/27.5" wheel setup as standard can be run as full 29er
Lightweight Bosch CX-R drive unit with 120 Nm torque and 800 Wh removable battery
Fox Podium inverted fork, DHX Live Valve NEO coil shock and wireless SRAM X0 Eagle drivetrain
Carbon rimmed DT HXC 1500 wheelset with Continental Kryptotal tyres
Lifetime frame warranty for Category 4 All Mountain (AM) + Enduro use

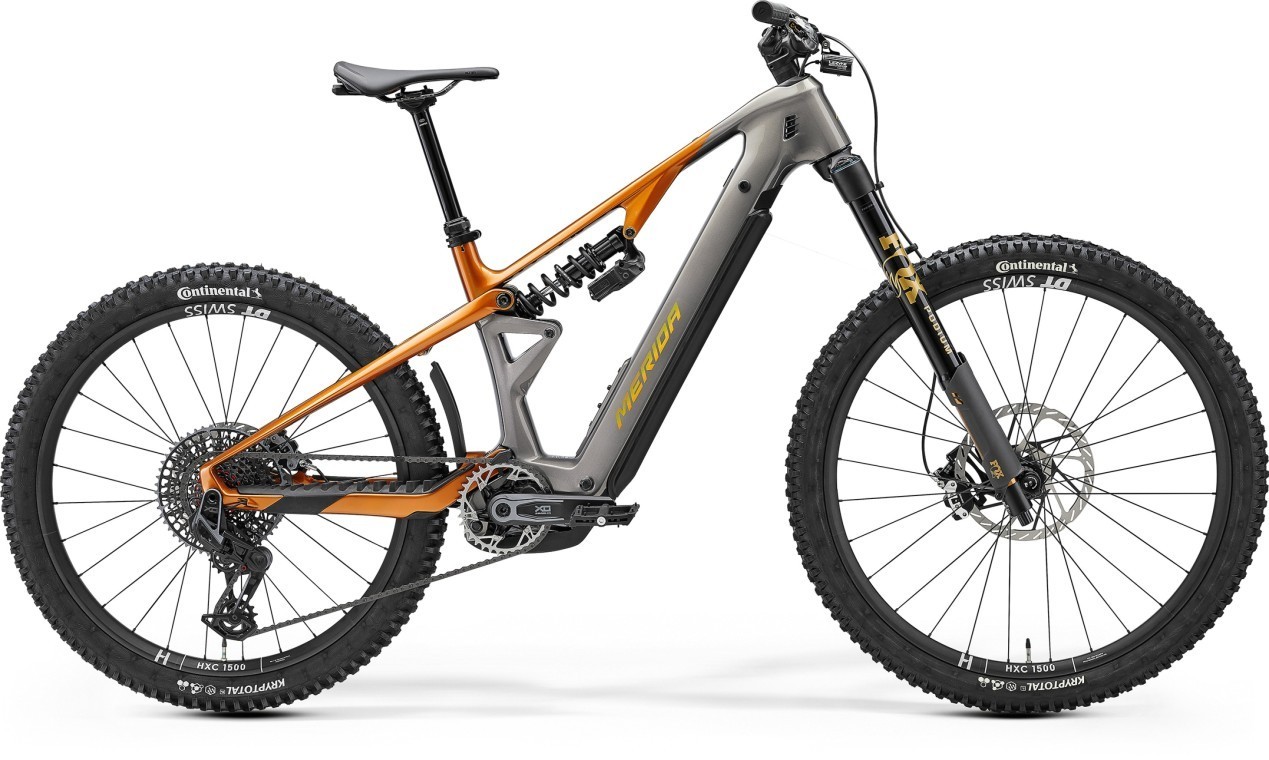

The ultimate enduro e-MTB. Refined handling and chaos-taming suspension in a flawless package. Designed for riders who want the very best components money can buy on a reliable, tough and versatile race ready machine
The Lithos 10K is Merida's ultimate enduro e-MTB with a carbon fibre frame to keep mass low for refined handling, along with a new geometry that maximises traction and control on the toughest, roughest trails. With the lightweight but hugely powerful Bosch CX-R drive unit and a high-capacity 800 Wh battery, it's got the power to tackle big mountain adventures and multi-stage races. The smart Fox DHX Live Valve NEO coil-sprung rear shock automatically adjusts damping support for speed and efficiency whilst up front, there's a buttery smooth inverted Fox Podium fork. With a full carbon frame and 170?mm of travel at either end, it’s built for the toughest tracks, pushing hard with friends and racing against the clock. The handling has been engineered to help you carry speed, no matter what the gradient or ground. The geometry is made to maximise traction on flat turns and confidence on steep sections with a longer chainstay and higher stack, while travel-adjustable dropper posts and our AGILOMETER sizing mean you can fine-tune fit and handling. For versatility you can run a lightweight 600 Wh battery (available separetely) for agile handling or the standard high-capacity 800 Wh for big days. You have the choice of running a full 29” setup for flat-out speed or the standard mixed 29/27.5” setup to retain plenty of agility. The options don't end there, you can route cables cleanly through the WIRE PORT or semi-externally via headtube ports if you need rapid access.
Pay in 3 instalments of £3666.67* or in 30 days.
Available on all full price items.
We accept Cycle Scheme
Save up to £4,620
Pay with Cycle Scheme
Specification| Availability | In stock |
|---|---|
| BIKE year | 2027 |
| Category | Mountain Bike |
| Colour | Grey to Wild Honey (Holo Honey) |
| Condition | Brand new |
| Frame | Lithos CF I ; carbon; 160mm travel; 29" x 2,4" max. tyre size; 148x12mm axle standard, intube; |
| Motor | Bosch Performance Line CX-R |
| Battery | Bosch PowerTube 800; 800Wh |
| Battery Capacity | 800Wh |
| e Bike Display | Bosch Kiox 400C |
| Charger | Bosch 4A Charger (220-240V) |
| Mode Switch | Bosch Mini Remote |
| Shock | Fox Float X Factory Live Valve Neo |
| Fork | Fox Podium Factory; 170mm travel; tapered; 44mm fork offset; 29x2.6" max tyre size |
| Gears | 12 |
| Shifters | SRAM dropper lever MMX and SRAM AXS Pod Ultimate Controller |
| Rear Derailleur | SRAM X0 Eagle Transmission AXS |
| Chain | SRAM X0 Eagle Transmission; Flattop |
| Chainset | SRAM XX Eagle Transmission E-MTB for Bosch; 36 teeth with SRAM XO Eagle E-MTB Crank, 160mm all sizes |
| Cassette | SRAM CS XS 1295 T-TYPE 10-51; 12 speed |
| Brake Lever | SRAM Maven Ultimate |
| Front Brake | SRAM Maven Ultimate; 4 piston caliper with SRAM HS2; 220mm rotor |
| Rear Brake | SRAM Maven Ultimate; 4 piston caliper with SRAM HS2; 200mm rotor |
| Grip | Merida Expert TR |
| Handlebar | Race Face Era; 780mm wide |
| Stem | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount - 40 mm all sizes |
| Head Set | Acros ICR Merida Integrated neck w/ Blocklock |
| Pedal | VP Components VP-532 |
| Saddle | Proxim Altius Triox; V-mount adapter; incl. Merida minitool |
| Seat Post | Merida Team TR II; 34.9mm diameter; 0mm layback; all sizes 30-230mm travel |
| Wheel Size | 29" / 27.5" |
| Rims | Part of Wheelset - DT Swiss HXC 1500; 30mm inner rim width; carbon; Tubeless ready (tubeless tape and valves included) |
| Front Hub | Part of Wheelset - DT Swiss HXC 1500; 110x20mm; 6-Bolt |
| Rear Hub | Part of Wheelset - DT Swiss HXC 1500; 148x12mm; 6-Bolt; SRAM XD |
| Front Tyre | Continental Kryptotal-F; 29x2.4"; folding; TR; Enduro casing; Super soft Compound |
| Rear Tyre | Continental Kryptotal-R; 27.5x2.4" ; folding; Enduro casing, soft Compound |
| Colour | Grey To Wild Honey(Holo Honey) |
| Season | 2026 |
| Front Light | Lezyne Hekto StVZO E350+ Reverse; reverse Merida Custom Mount |
| Rear Light | USB REAR Light CG-214RG |
| Other | RF-001 mini fender |
| PNUM | 21892 |
| PRICE | £11000.00 |
| Available now |
Click here to view finance options.
Call 029 2052 9955 or email us and this bike could be yours today!
Size guide
Mountain bike sizing for this model, with the available sizes shown alongside the guide.
Start with rider height, then adjust for reach, standover and riding style.
| Rider height | Frame size suggested | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (in) |
| 4' 10" - 5' 2" | 148 - 158 | XS | 13 - 14 |
| 5' 2" - 5' 6" | 158 - 168 | S | 15 - 16 |
| 5' 6" - 5' 10" | 168 - 178 | M | 17 - 18 |
| 5' 10" - 6' 1" | 178 - 185 | L | 19 - 20 |
| 6' 1" - 6' 4" | 185 - 193 | XL | 21 - 22 |
| 6' 4" - 6' 6" | 193 - 198 | XXL | 23 - 24 |
