Please call to enquire about availability.
1500
.00Lightweight aluminium frame with carbon look and full carbon fork
SRAM Apex single ring 12-speed drivetrain
Sporty yet comfortable geometry and seating position
Flat handlebar setup with powerful Tektro hydraulic disc brakes
Fast rolling 45 mm gravel tyres from Schwalbe
Multiple fixing points for fenders, kickstand and a rear rack

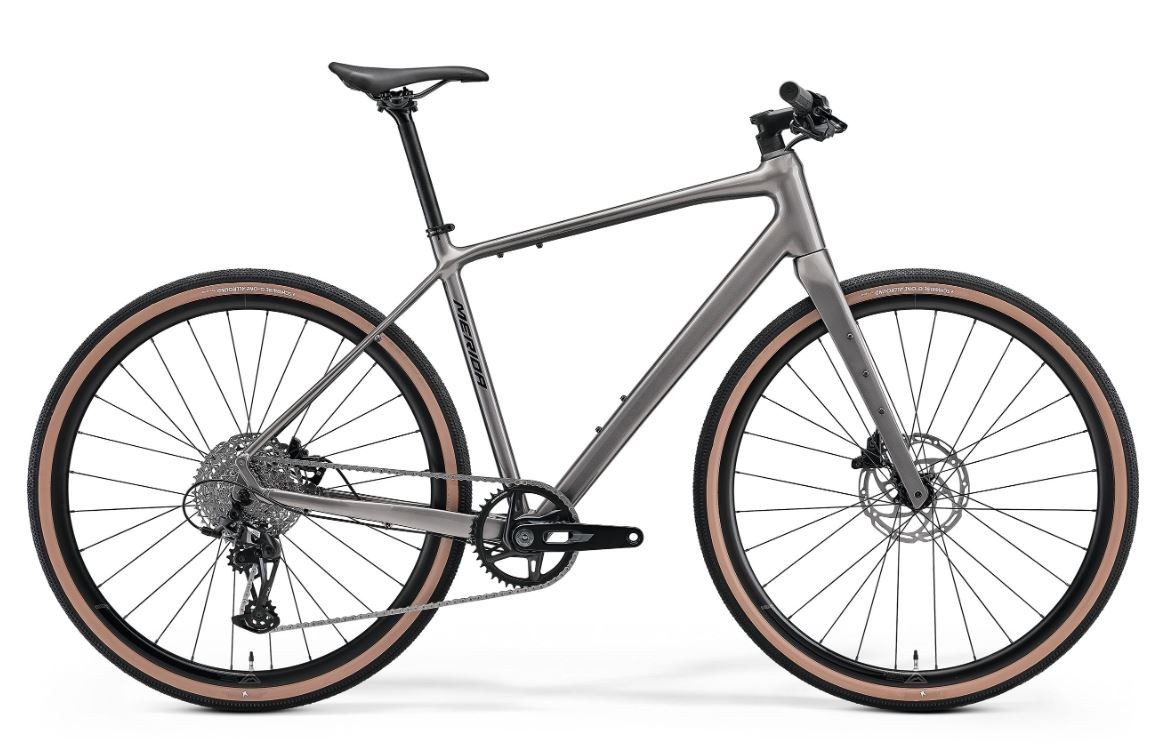

A comfortable option for fast commutes, gravel tracks or more leisurely waterside rides. Smooth, lightweight aluminium frame and carbon fork. SRAM 1 x 12 drivetrain. Tektro hydraulic disc brakes. 45mm Schwalbe tyres.
The top of the range, offering a comfortable, upright, riding position with flat bars - perfect for fast commutes and longer journeys on road or gravel. The lightweight aluminium frame is minimalist; welds have a smooth appearance creating a carbon like appearance. The 45mm Schwalbe tyres can be upgraded to enhance puncture resistance and grip as there's 50mm clearance. Simple Sram 1 x 12 drivetrain, Tektro hydraulic disc brakes. Multiple fixing points for fenders, racks etc add to the bike's flexibility and updated geometry enhances stability.
Specification| Availability | Out of stock, please call for availability |
|---|---|
| BIKE year | 2027 |
| Category | Hybrid |
| Colour | Warm Slate Grey (Black) |
| Condition | Brand new |
| Frame | AL-A IV - aluminium. Internal cable routing. Tapered head tube, inboard disc mount, BSA BB standard, 100x12mm/135x9mm QR axles. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c |
| Fork | Silex II CF2; Tapered; carbon; 700x47C max. wheel size |
| Gears | 12 |
| Shifters | Rear: Sram Eagle S200 MMX |
| Rear Derailleur | Sram Apex XPLR |
| Bottom Bracket | SRAM DUB BSA Road Wide; 68mm |
| Chain | Sram Apex Flattop |
| Chainset | Sram Rival XPLR; 42 teeth; Crank Length: 170mm for all sizes |
| Cassette | Sram PG-1231 XPLR; 11-44 teeth; 12 speed |
| Front Brake | Tektro Orion M6020; 2 piston |
| Rear Brake | Tektro Orion M6020; 2 piston; incl. HD5.1 MMX adapter |
| Grip | Merida Comp TR |
| Handlebar | Merida Expert CC; aluminium; 680mm wide; 10mm rise |
| Stem | Merida Team CC III; aluminium; 31.8mm diameter; -6° degree rise |
| Head Set | Acros ICR Merida External neck w/diecast splitring |
| Pedal | VP VPE-891 |
| Saddle | Merida Comp SL; 25% recycled material; V-mount |
| Seat Post | Merida Comp CC; aluminium; 27.2mm diameter; in-line |
| Wheel Size | 700c |
| Rims | Merida Expert SL III; 23mm inner rim width; 26mm deep; aluminium; Tubeless ready (tubeless tape and valves not included) |
| Spokes | Black stainless |
| Front Hub | Shimano TC500; 100x12mm; 28 spoke; Centerlock |
| Rear Hub | Shimano QC400-HM; 135x9mm; 32 spoke; centerlock |
| Front Tyre | Schwalbe G-ONE R; 45x622 |
| Rear Tyre | Schwalbe G-ONE R; 45x622 |
| Colour | Warm Slate Grey (Black) |
| Season | 2027 |
| PNUM | 2296 |
| PRICE | £1500.00 |
Click here to view finance options.
Call 029 2052 9955 or email us and this bike could be yours today!
Size guide
Hybrid sizing for this model, with the available sizes shown alongside the guide.
Start with rider height, then adjust for reach, standover and riding style.
| Rider height | Frame size suggested | |||
|---|---|---|---|---|
| (ft - in) | (cm) | (in) | Size | (cm) |
| 4' 10" - 5' 1" | 147 - 155 | 13 - 14 | XS | 47 - 49 |
| 5' 1" - 5' 5" | 155 - 165 | 15 - 16 | S | 50 - 52 |
| 5' 5" - 5' 9" | 165 - 175 | 17 - 18 | M | 53 - 54 |
| 5' 9" - 6' 0" | 175 - 183 | 19 - 20 | L | 55 - 57 |
| 6' 0" - 6' 3" | 183 - 191 | 21 - 22 | XL | 58 - 61 |
| 6' 3" - 6' 6" | 191 - 198 | 23 - 25 | XXL | 61 - 63 |
