Finance£4399
RRP £5,750,
4399
.99Trade sale! only in Mid size only! Bank Transfer payment no cycle 2 work schemes.

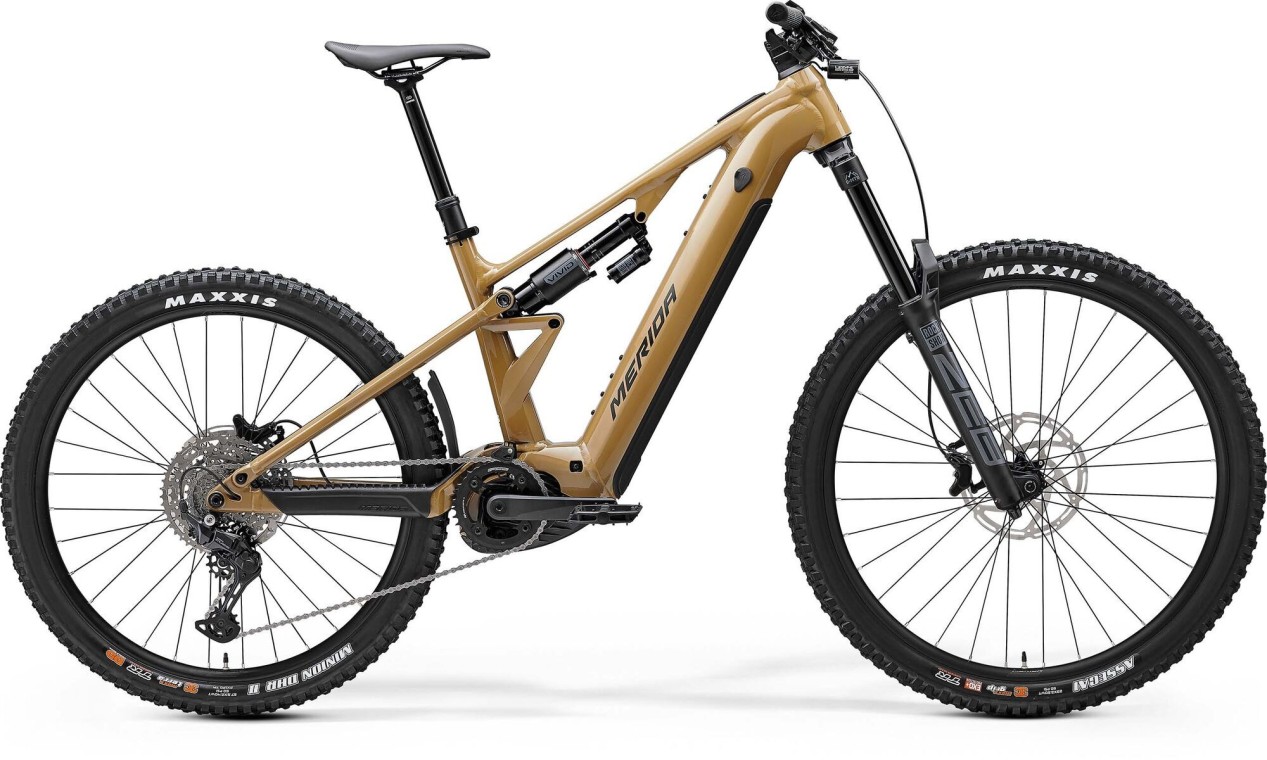

The eOne-Eighty 500 is built for taking on the gnarliest trails wherever you find them. With 180mm of travel, a RockShox Zeb Base fork and Vivid Base shock mean this bike is ready to eat up rock gardens for breakfast, drops for lunch and some gaps for dinner - or whatever you're hungry for. The Bosch CX drive unit and a huge 800Wh battery mean you can repeat that for as long as you like too, The eOne-Eighty is for the heavy hitters, bike park senders and big mountain brawlers. It’s ready to ride the biggest lines and burliest tracks and you can say goodbye to waiting in the uplift queue because it can rip and repeat all day long thanks to a big 800Wh battery and Bosch CX power. It’s our longest travel e-bike ever, with 180mm of suspension at either end on a robust aluminium frame. Add coil shock compatibility, mullet only setup plus a whole host of other features and getting rowdy is where the eOne-Eighty starts, not finishes. It’s also our first e-MTB to use the Bosch Performance Line CX drive unit, offering powerful assistance with 85Nm on tap. There’s a serious amount of range on offer too, thanks to the new 800Wh battery and the option to add a 250Wh Bosch range extender. You can easily remove the battery for off-bike charging or replacement on a really big ride. It’s rated Category 5 (bike park and downhill approved), so you can get stuck into as many bike park laps or downhill tracks as you like without voiding the 5-year warranty. Approx overall weight 26kg
Specification
We accept Cycle Scheme
Save up to £1,848
Pay with Cycle Scheme
Specification| Availability | In stock |
|---|---|
| BIKE year | 2025 |
| Category | Mountain Bike |
| Colour | Gloosy River Glay |
| Condition | Brand new |
| Frame | LITE I ; all aluminium; 180mm travel; 148x12mm bolt through axle axle standard; removable intube battery; Max. tyre size 27.5 x 2,6 |
| Motor | Bosch Performance Line CX |
| Battery | Bosch PowerTube 800; 800Wh |
| Battery Capacity | 800Wh |
| e Bike Display | Bosch Pruion 200 |
| Mode Switch | Bosch Mini Remote |
| Shock | Rock Shox Vivid Base |
| Fork | Rockshox Zeb Base eMTB; Air; 180mm travel; Tapered; 44mm fork offset; 29x2.6" max. tyre size |
| Gears | 10 |
| Shifters | Shimano Cues U6000-10 |
| Rear Derailleur | Shimano CUES U6000; GS |
| Bottom Bracket | Attached |
| Chain | Shimano LG500 |
| Chainset | FSA 1x Alloy Spider + Mega Tooth steel chain ring; 36 teeth. FSA CK-220 wide E-Bike Forged Crankset; 165mm for all sizes |
| Cassette | Shimano Cues LG400; 11-48 teeth; 10 speed |
| Brake Lever | Tektro Gemini |
| Front Brake | Tektro Gemini M535; 4 piston hydraulic disc brake with Tektro TR203-45; 203mm rotor |
| Rear Brake | Tektro Gemini M535; 4 piston hydraulic disc brake with Tektro TR203-45; 203mm rotor |
| Grip | Merida Expert EC |
| Handlebar | Merida Expert eTR; 780mm wide; XS,S 20mm rise ; M,L,XL 30mm rise |
| Stem | Merida Expert eTR II; aluminium; 35 DSH; 0 ASD; Supernova mount. 40 mm all sizes |
| Head Set | Acros ICR Merida external neck with Blocklock |
| Pedal | VP VPE-533 |
| Saddle | Merida Comp SL; 28% recycled material; V-mount; incl. Merida minitool |
| Seat Post | Merida Expert TR II; 34.9mm diameter; 0 mm lay back; XS: 125mm travel - S: 150mm travel- M/L/XL: 200mm travel - XL: 230mm travel |
| Wheel Size | 29" / 27.5" |
| Rims | Merida Expert TR II; 110x15 WHF; 148x12 WHR; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5" |
| Spokes | Black stainless |
| Front Hub | Shimano TC500; 15x100mm; 32 spoke; Centerlock |
| Rear Hub | Shimano TC500; 12x148mm; 32 spoke; Centerlock with Merida Expert TR; including removeable lever, 6/4mm allen key |
| Front Tyre | Maxxis Assegai; 29x2.5"; kevlar bead; TR EXO+ 3C MaxxGrip |
| Rear Tyre | Maxxis Minion DHR II; 27.5x2.4"; kevlar bead; 3C DD TR MaxxTerra |
| Colour | Glossy River Clay |
| Season | 2025 |
| Front Light | Lezyne Hecto StVZO E350+ Reverse |
| Rear Light | USB REAR Light CG-214RG Geometry |
| MPN | A62511A03264 |
| PNUM | 20621 |
| PRICE | £4399.99 |
| Available now |
Size guide
Mountain bike sizing for this model, with the available sizes shown alongside the guide.
Start with rider height, then adjust for reach, standover and riding style.
| Rider height | Frame size suggested | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (in) |
| 4' 10" - 5' 2" | 148 - 158 | XS | 13 - 14 |
| 5' 2" - 5' 6" | 158 - 168 | S | 15 - 16 |
| 5' 6" - 5' 10" | 168 - 178 | M | 17 - 18 |
| 5' 10" - 6' 1" | 178 - 185 | L | 19 - 20 |
| 6' 1" - 6' 4" | 185 - 193 | XL | 21 - 22 |
| 6' 4" - 6' 6" | 193 - 198 | XXL | 23 - 24 |
