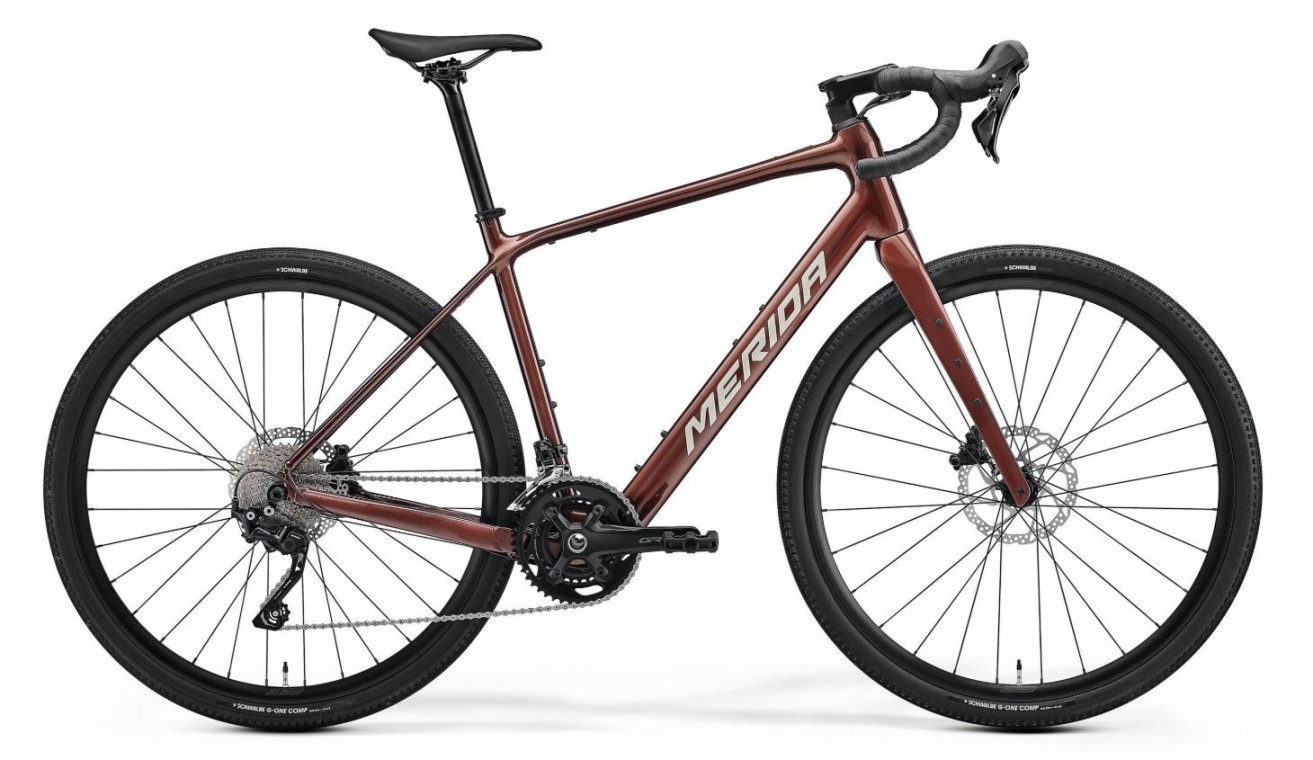

Merida eSilex 400 2027 Electric Gravel Bike
The Merida eSilex 400 2027 is a versatile electric gravel bike designed to take you further, whether you're riding gravel tracks, country lanes, commuting through town or heading out for longer all-road adventures. Combining the natural feel of a gravel bike with discreet electric assistance, the eSilex 400 is built for riders who want more freedom to explore.
At the heart of the Merida eSilex 400 2027 is the MAHLE X30 rear-hub motor, delivering smooth and natural-feeling assistance when you need it. The motor is powered by a neatly integrated 237Wh MAHLE battery, helping maintain the clean lines and familiar ride feel of a conventional gravel bike while providing useful assistance on climbs, headwinds and longer rides.
The eSilex 400 features a lightweight and durable eSILEX AL-A IV aluminium frame paired with a MERIDA SILEX II CF2 carbon fork. The frame accommodates tyres up to 700 x 45C, while the supplied Schwalbe G-One Comp K-Guard 700 x 45C tyres provide a versatile setup for mixed surfaces, gravel roads and everyday riding.
For dependable shifting across varied terrain, the Shimano GRX 400 2x10-speed groupset provides a wide range of gearing, with a 46/30T chainset and 11-36T cassette. Shimano hydraulic disc brakes provide controlled braking performance, making the Merida eSilex 400 a confident choice for changing weather and varied riding conditions.
The 2027 Merida eSilex 400 also features tubeless-ready aluminium wheels, internal cable routing and practical mounting options, making it suitable for everything from daily commuting to weekend gravel adventures and longer mixed-surface rides.
Merida eSilex 400 2027 Key Features
MAHLE X30 rear-hub electric motor
237Wh integrated MAHLE battery
eSILEX AL-A IV aluminium electric gravel frame
MERIDA SILEX II CF2 carbon fork
Shimano GRX 400 2x10-speed drivetrain
Shimano GRX hydraulic disc brakes
46/30T chainset with 11-36T cassette
700c wheels with 45mm Schwalbe G-One Comp tyres
Tubeless-ready aluminium rims
Designed for gravel, commuting, fitness and all-road adventures
Pay in 3 instalments of £916.67* or in 30 days.
Available on all full price items.
We accept Cycle Scheme
Save up to £1,155
Pay with Cycle Scheme
Specification| Availability | In stock |
|---|---|
| BIKE year | 2027 |
| Category | Gravel |
| Colour | Wild Berry (High Cream) |
| Condition | Brand new |
| Frame | eSilex AL-A IV; aluminium; 700Cx45mm max. tyre size; 100x12/135x9 axle standard |
| Motor | Mahle X30 Drive Unit |
| Battery | Mahle ix2 237Wh |
| Battery Capacity | 237Wh |
| Charger | Mahle X30 Charger |
| Mode Switch | Mahle iWoc ONE |
| Fork | Merida Silex II CF2; Tapered; MAT carbon; 700x47C max. tyre size |
| Gears | 10 |
| Shifters | Front: Shimano GRX 400; Rear: Shimano GRX 400 |
| Front Derailleur | Shimano GRX400 |
| Rear Derailleur | Shimano GRX400 |
| Bottom Bracket | Shimano SM-RS501; 68mm |
| Chain | KMC e10S |
| Chainset | Shimano GRX600; 46-30 teeth, Crank: 165mm |
| Cassette | Shimano Claris HG50; 11-36 teeth; 10 speed |
| Front Brake | Shimano STRX410; Disc |
| Rear Brake | Shimano STRX410; Disc |
| Grip | Merida ROAD Expert |
| Handlebar | Merida Expert GR II; aluminium; (XXS-XS-S) - 400mm , M - 420mm , (L-XL) - 440mm |
| Stem | Merida Team CC III; aluminium; 31.8mm diameter; -6 degree stem angle; incl. MERIDA SMART MOUNT; 80mm |
| Head Set | Acros ICR Merida External neck w/diecast splitring |
| Pedal | VP VPE-891 |
| Saddle | Merida Comp SL; 28% recycled material; V-mount |
| Seat Post | Merida Comp CC; 27.2mm diameter; in-line; aluminium |
| Wheel Size | 700c |
| Rims | Merida Comp SL II; 25mm inner rim width; 24 HRI; aluminium; Tubeless ready (tubeless tape and valves not included) |
| Spokes | Black stainless ; black nipples |
| Front Hub | Shimano TC500; 100x12mm; 28 spoke; Centerlock |
| Front Tyre | Schwalbe G-One Comp K-Guard; 700x45C |
| Rear Tyre | Schwalbe G-One Comp K-Guard; 700x45C |
| Colour | Wild Berry (High Cream) |
| Season | 2027 |
| PNUM | 22729 |
| PRICE | £2750.00 |
| Available now |
Click here to view finance options.
Call 029 2052 9955 or email us and this bike could be yours today!
Looking for older models of the Merida eSilex 400?
Size guide
Gravel sizing for this model, with the available sizes shown alongside the guide.
Start with rider height, then adjust for reach, standover and riding style.
| Rider height | Frame size suggested | ||
|---|---|---|---|
| (ft - in) | (cm) | Size | (cm) |
| 5' 0" - 5' 3" | 152 - 160 | XS | 49 - 50 |
| 5' 3" - 5' 6" | 160 - 168 | S | 51 - 52 |
| 5' 6" - 5' 9" | 168 - 175 | M | 53 - 54 |
| 5' 9" - 6' 0" | 175 - 183 | L | 55 - 56 |
| 6' 0" - 6' 3" | 183 - 191 | XL | 57 - 58 |
| 6' 3" - 6' 6" | 191 - 198 | XXL | 60 - 61 |
