Scott Passage 10 Wave Electric Hybrid Bike 2026

Scott Passage 10 Wave 2026 Electric Hybrid

3699

.00
from

98

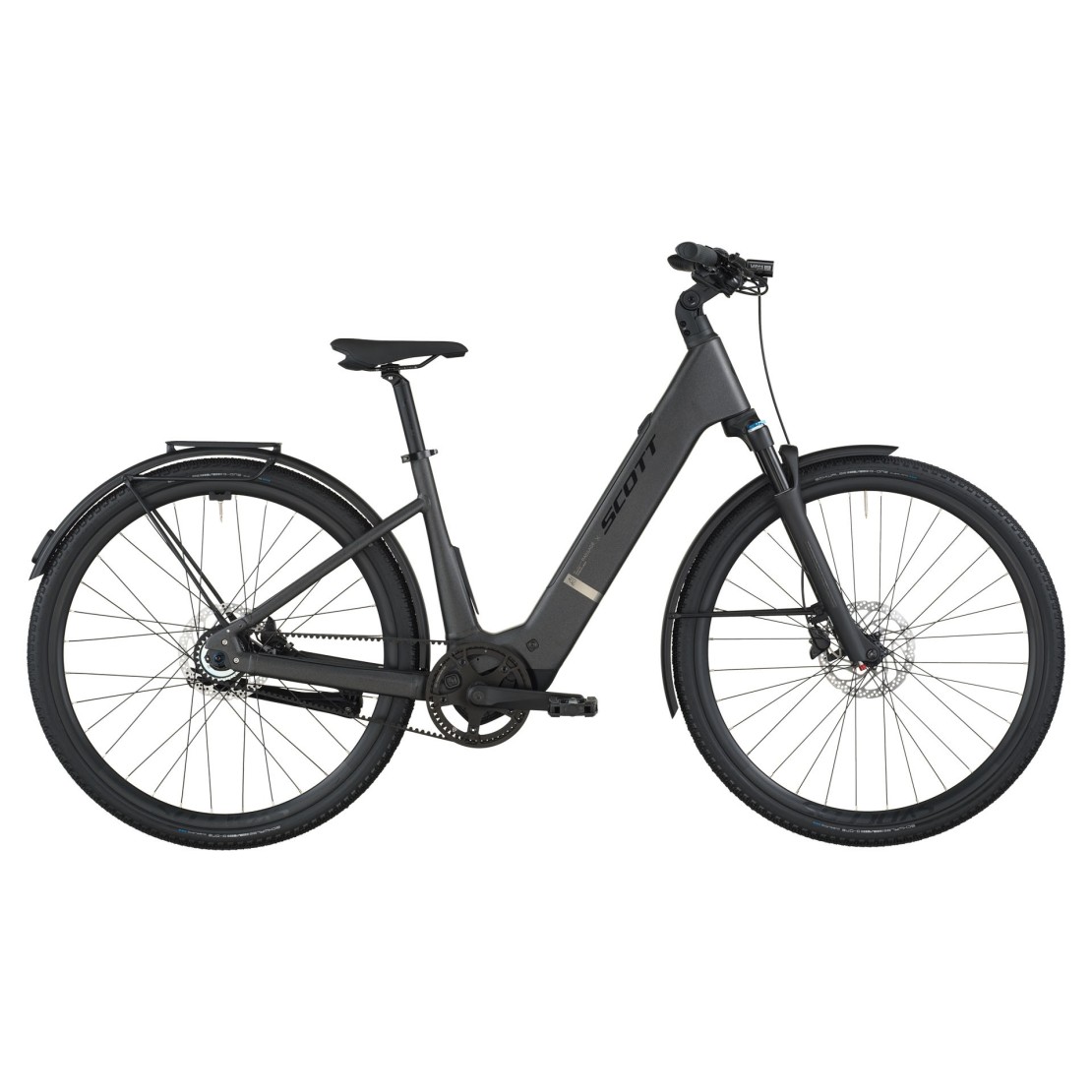

Scott Passage 10 Wave 2026 Electric Hybrid

The Passage 10 Wave Bike is our e-URBAN machine that`s easy to ride, thanks to its low standover height, making it a cinch for everyone in the family to get on and enjoy riding in the city.

At first glance, you may not even register Passage 10 as an E-Bike, with its trim lines and non-intimidating stance. That`s thanks to Bosch`s SX motor (which weighs just 2kg) and slim 400Wh battery. It`s a powerful combo that keeps the bike light, agile, and balanced while delivering power whenever you need it and the range to handle a long commute easily.

In addition to being easy to mount, Passage 10 is nicer to ride than larger E-Bikes. The Bosch SX motor features a narrower Q-factor that lets you have a natural pedaling style and handling you may be used to feeling on lightweight bikes. Out front is a 75mm suspension fork that cushions your ride from rougher pavement as you zip around town. And if taking the scenic route or packing extra for the commute in, the rear rack sets you up to stow the day`s essentials.

We equipped this Passage 10 with Shimano`s 8-speed drivetrain for plenty of gearing to enjoy your city streets and 45mm tyres to add stability and comfort to navigate any surprises on the route. There`s also a kickstand for easy parking at your destination.

Please note that bike specifications are subject to change without prior notice.

Remarks

New Frame

Pay in 3 instalments of £1233* or in 30 days.
Available on all full price items.

We accept Cycle Scheme
Save up to £1,554

Pay with Cycle Scheme

Cassette Specification

Availability In stock
BIKE year 2026
Category Hybrid
Colour Grey
Condition Brand new
battery

Compact Tube 400Wh

Charger: 2A Charger

carriers

Carriers: Racktime Micro rear rack, Snap it 2.0 compatible, 8Kg

Rack: Racktime Micro Rack SnapIt 2.0 8KG

cassette Gates CDC 26T
chainring Gates CDC 52T w/Guard
chainset

Gates CDC 125T

crankset FSA CK-220 170mm
display Bosch Purion 200
extras

Alumee alloy profile Fender
Passage Kickstand

fork SR Suntour NRX32-E Air LO R, Tapered , 15x100 bolt Axle, Remote Lock Out , Alloy Steerer, 75mm Travel
frame Alloy S-L29, 6061 Alloy custom butted tubing
Top extraction battery
handlebar Syncros Welded Alloy Combo 680mm, Backsweep 9?, Upsweep 8?, 70mm, with front Light mount
headset Acros, 1.5- 1.5
semi integ. OD 50/61mm, ID 44/55mm
hub front Shimano HBTC50015B CL, 15x100mm
hub rear Shimano Nexus 8 Speed
lighting Lezyne Fusion E550SM front light
Rear Supernova TL3Z
motor Bosch Performance Line SX BDU314Y
EU: 25kmh
pedal Marwi SP-827
rims Syncros X15 Disc
saddle Syncros Capilano
seatpost

Seatpost: Syncros M3.0, 31.6

shifters Shimano Alfine SL-S503 Rapid Fire Plus
shock

Travel: 75mm

tyres

Front: Schwalbe G-One Overland 365 Performance, 700x45C

Rear: Schwalbe G-One Overland 365 Performance, 700x45C

wheelset

Spokes: Black Spokes

PNUM21317
PRICE£3699.00
 Available now

Thumbs up Reviews

 FeelQualityRideValue
Mr Steven Dexter 10 out of 10 10 out of 10 10 out of 10 10 out of 10 10

Previous model reviewed. Scott bikes have the perfect balance for road and country riding. Great speed on the road and great balance off road.

Mr Ray Lowe 10 out of 10 10 out of 10 10 out of 10 10 out of 10 10

Previous model reviewed. Damian was really helpfull in ensuring I got the right bike at the right price,and next day delivery.Many thanks

Mr Sanjiv Venkatasamy 9 out of 10 8 out of 10 9 out of 10 7 out of 10 8.3
Mr Lea Barker 10 out of 10 10 out of 10 10 out of 10 7.5
Miss Louise Davis 8 out of 10 10 out of 10 9 out of 10 10 out of 10 9.3
Feel 9
Quality 10
Ride 10
Value 9
Overall rating 9.5
Send

Click here to view finance options.

Call 029 2052 9955 or email us and this bike could be yours today!

Scott fit guide

Sizing guide Size guide

Hybrid sizing for this model, with the available sizes shown alongside the guide.

SCOTT leisure and trekking guideHybrid, trekking and leisure fit

Recommended rider height

Start with rider height, then adjust for reach, standover and riding style.

Rider heightFrame size suggested
(ft - in) (cm) (in) Size (cm)
4' 10" - 5' 1" 147 - 155 13 - 14 XS 47 - 49
5' 1" - 5' 5" 155 - 165 15 - 16 S 50 - 52
5' 5" - 5' 9" 165 - 175 17 - 18 M 53 - 54
5' 9" - 6' 0" 175 - 183 19 - 20 L 55 - 57
6' 0" - 6' 3" 183 - 191 21 - 22 XL 58 - 61
6' 3" - 6' 6" 191 - 198 23 - 25 XXL 61 - 63
